Description

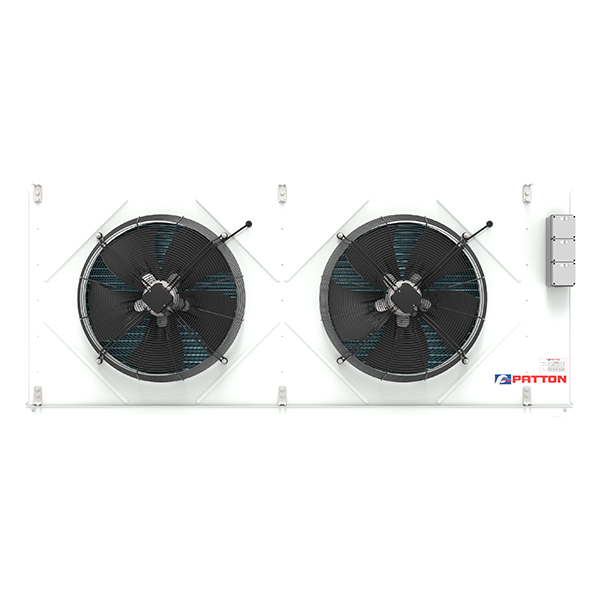

Low Temp Unit Cooler JLC100
Product number:
W6500
| Fin Spacing : | 5 mm |
|---|---|
| Product Group : | Evap - Patton LT |
| R404A Capacity @ -24SST/6KTD : | 10920 W |
| Temperature Application : | Low Temp |
General
| Product Group : | Evap - Patton LT |
|---|
Air Volume/Air Flow
| Air Throw : | 26 m | Air Volume : | 13428 m³/h |
|---|

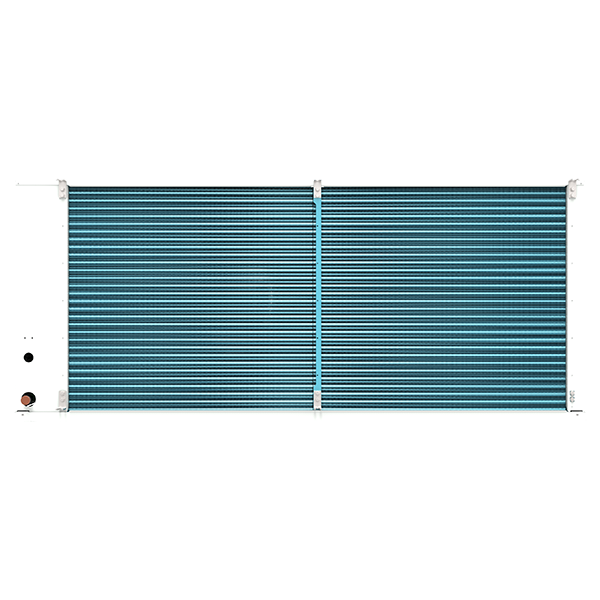

Coils
| Coil : | Fin and Tube |
|---|
Connections
| Drain Connection Size : | 40 mm | Liquid Line Connection : | 1/2 in |
|---|---|---|---|
| Suction Line Connection : | 1 3/8 in |
Drain
| Drain Location : | Right |
|---|
Electrical
| Electric Defrost : | No | Electrical Connection Location : | Right |
|---|
Evaporator
| Fin Spacing : | 5 mm |
|---|
Fan
| Fan Size : | 630 mm | Number Of Fans : | 1 |
|---|
Measurements
| Depth : | 472 mm | Height : | 1083 mm |
|---|---|---|---|
| Length : | 1306 mm | Weight : | 102 kg |
R404A Performances
| R404A Capacity @ -24SST/6KTD : | 10920 W |
|---|
R448A Performances
| R448A Capacity @ -24SST/6KTD : | 10800 W |
|---|
Temperature
| Temperature Application : | Low Temp |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-j-series-en-ast-609006.pdf | Technical Literature | 1.27 MB |
