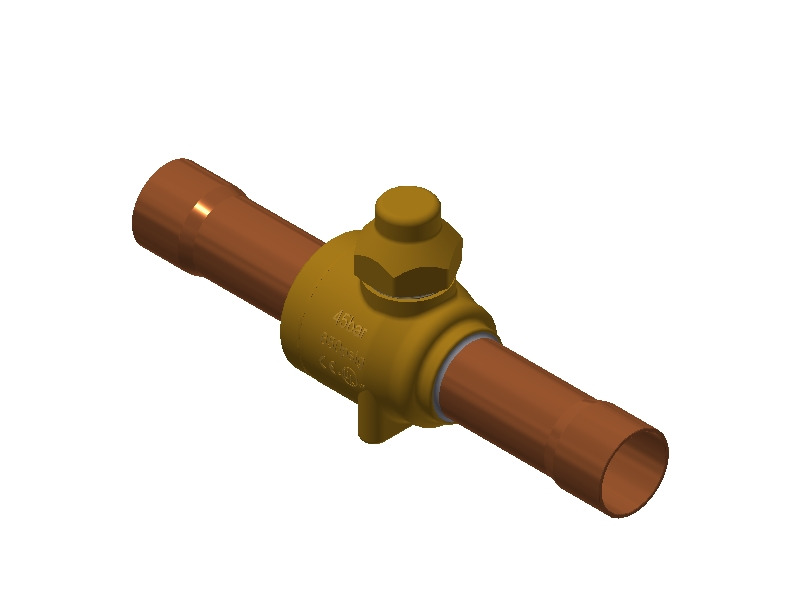

Ball Valve 1-1/8Sol
Item Number:
009L7026
| Max Operating Pressure : | 45.0 Bar |
|---|---|
| Product Group : | Ball Valves - Danfoss |
| Refrigerant : | R22/R407C, R32, R134a, R290, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
General Information
| Equipment : | Cap w. wire seal |
|---|---|
| Model Number : | 009L7026 |
| Product Group : | Ball Valves - Danfoss |
| Type : | GBC 28s |
Additional Info
| Family : | GBC v2 |
|---|
Connections
| Connection Type : | Solder, ODF |
|---|---|
| Inlet Connection Size : | 1 1/8 in |
| Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 1 1/8 in |
| Outlet Type : | Solder, ODF |
Kv Values
| Kv Value : | 62.250 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818081 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428515757 |
| Gross Weight : | 1.036 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Copper |
Measurements
| Net Weight : | 0.87 kg |
|---|---|
| Weight : | 0.87 kg |
Pressure
| Max Operating Pressure : | 45.0 Bar |
|---|---|
| Test Pressure : | 65 Bar |
Refrigerant
| Refrigerant : | R22/R407C, R32, R134a, R290, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, C UL US LISTED, EAC, UKCA |
|---|
Temperature
| Max Temperature : | 150 °C |
|---|---|
| Medium Temperature Range Note : | 100°C-150°C for short term use |
| Min Temperature : | -40 °C |
| Temperature Range : | -40-150 °C |
Valves
| Access Port : | No |
|---|---|
| CV Value : | 71.960 gal/min |
| Direction : | Straightway |
| Flow Direction : | Bi-flow |
| Flow Direction Indicator : | Embossed 2-way arrow |
Product information
Danfoss shut-off ball valves, type GBC, are manually operated shut-off valves for refrigeration systems, in order to open and to shut off inner flow path by operating the valve
spindle.
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air
conditioning systems. The GBC bi-directional ball valves can be delivered with or without external access port. The valves have one-piece wire seal cap to prevent unintentional cap removal or tampering between services.
Features:
- ¼ turn from fully open to fully closed
- Rotation stops at fully open and fully closed
positions - Ball status indicator on spindle top indicating
open or closed position - Double O-ring stem seal design
- Customized brass material ensures consistent
performance under aggressive environment - Rupture proof, internally-loaded spindle
design ensures safe operation under extreme
pressures - Bi-directional flow, valve orientation is
unimportant - Full port construction to match line size
- Drilled and tapped for panel mounting
- Versions with access port helps in reducing
cost if service of the system is necessary
