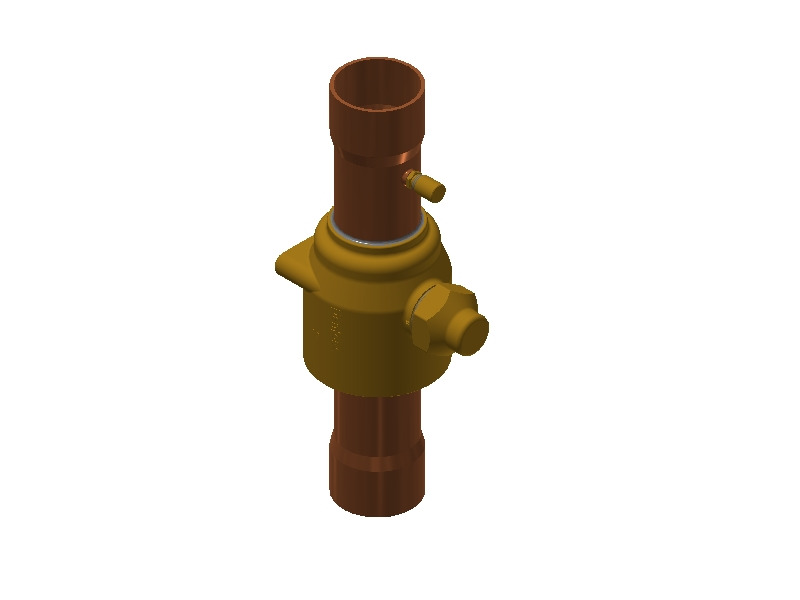

"Valve Ball D/Foss 2 1/8+Access"
Item Number:
009L7059
Max Operating Pressure : | 45.0 Bar |
---|---|
Product Group : | Ball Valves - Danfoss |
Refrigerant : | R22/R407C, R32, R134a, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
General Information
Equipment : | Cap w. wire seal |
---|---|
Parts Included : | Schrader valve |
Product Group : | Ball Valves - Danfoss |
Type : | GBC 54s |
Additional Info
Family : | GBC v2 |
---|
Connections
Connection Type : | Solder, ODF |
---|---|
Inlet Connection Size : | 2 1/8 in, 54.00 mm |
Inlet Type : | Solder, ODF |
Outlet Connection Size : | 2 1/8 in, 54.00 mm |
Outlet Type : | Solder, ODF |
Kv Values
Kv Value : | 240.110 m³/h |
---|
Logistical Information
Commodity Code : | 84818081 |
---|---|
Country Of Origin : | CHN |
EAN : | 5702428007887 |
Gross Weight : | 4.776 kg |
Material
Body Material : | Brass |
---|---|
Connection Material : | Copper |
Measurements
Net Weight : | 4.27 kg |
---|---|
Weight : | 4.27 kg |
Pressure
Max Operating Pressure : | 45.0 Bar |
---|---|
Test Pressure : | 65 Bar |
Refrigerant
Refrigerant : | R22/R407C, R32, R134a, R404A/R507A, R407A, R407F, R407H, R410A, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R513A, R515B, R516A, R1234yf, R1234ze(E) |
---|
Standards
Approval : | CE, C UL US LISTED, EAC, UKCA |
---|
Temperature
Max Temperature : | 121 °C |
---|---|
Medium Temperature Range Note : | 100°C-121°C for short term use |
Min Temperature : | -40 °C |
Temperature Range : | -40-121 °C |
Valves
Access Port : | Yes |
---|---|
CV Value : | 277.570 gal/min |
Direction : | Straightway |
Flow Direction : | Bi-flow |
Flow Direction Indicator : | Embossed 2-way arrow |
Product information
Danfoss shut-off ball valves, type GBC, are manually operated shut-off valves for refrigeration systems, in order to open and to shut off inner flow path by operating the valve
spindle.
The GBC valves are used in liquid, suction and hot gas lines in refrigeration and air
conditioning systems. The GBC bi-directional ball valves can be delivered with or without external access port. The valves have one-piece wire seal cap to prevent unintentional cap removal or tampering between services.
Features:
- ¼ turn from fully open to fully closed
- Rotation stops at fully open and fully closed
positions - Ball status indicator on spindle top indicating
open or closed position - Double O-ring stem seal design
- Customized brass material ensures consistent
performance under aggressive environment - Rupture proof, internally-loaded spindle
design ensures safe operation under extreme
pressures - Bi-directional flow, valve orientation is
unimportant - Full port construction to match line size
- Drilled and tapped for panel mounting
- Versions with access port helps in reducing
cost if service of the system is necessary
