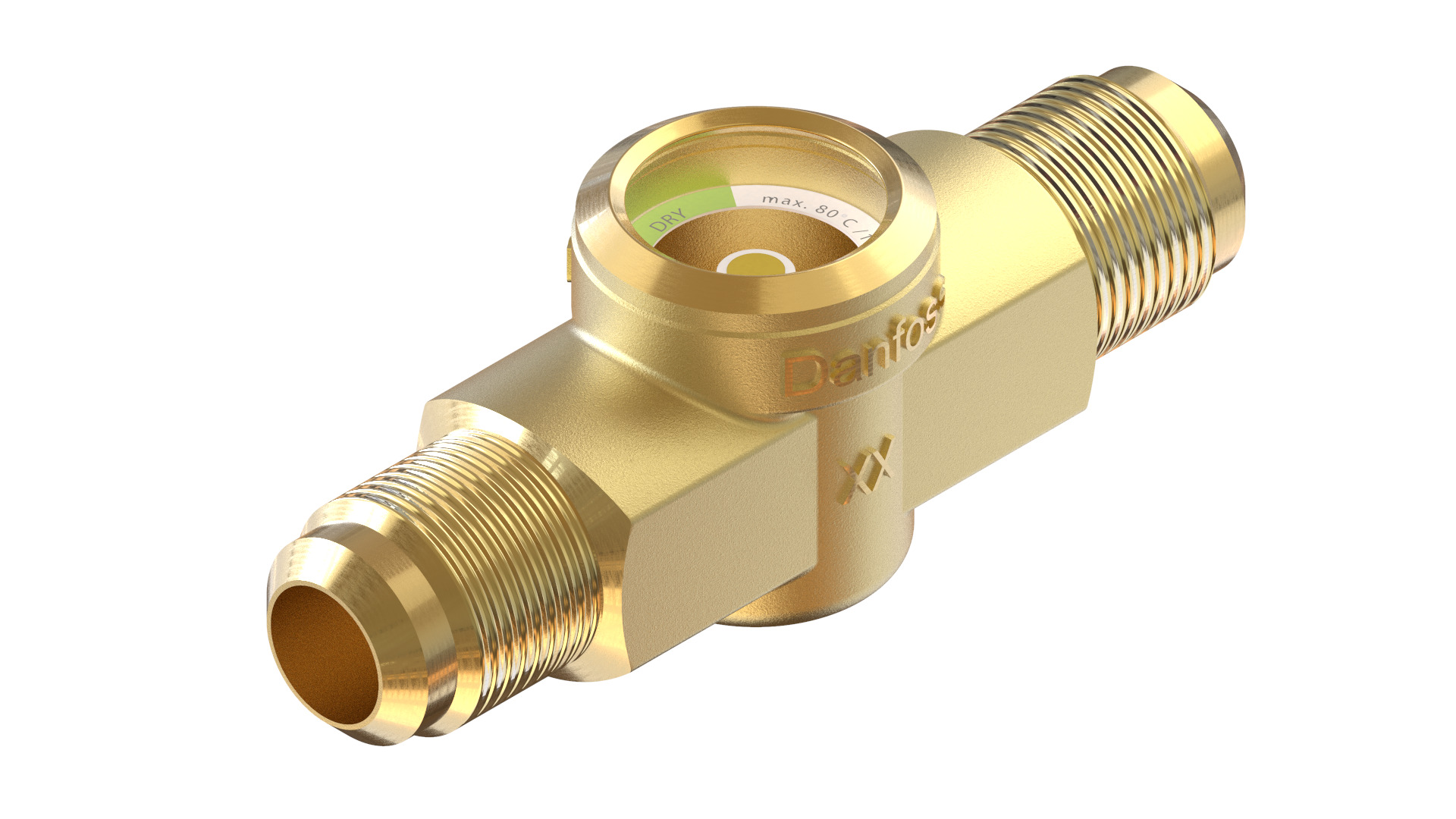

"Sight Glass 5/8 Mf/Mf"

"Sight Glass 5/8 Mf/Mf"
"Sight Glass 5/8 Mf/Mf"
"Sight Glass 5/8 Mf/Mf"
"Sight Glass 5/8 Mf/Mf"
"Sight Glass 5/8 Mf/Mf"
"Sight Glass 5/8 Mf/Mf"
Product number: 014L0165
PLEASE LOGIN TO SEE PRICES
Product Group : Sight Glasses - Danfoss
Description

Danfoss sight glasses, type SG/SGP, are installed after the filter drier in liquid line of refrigerating systems and in the compressor by using socket type, in order to observe property changes of the refrigerant (liquid/vapor) and to indicate the moisture level by colors.

Features:

  • Available with flare, solder and socket connections, with and without moisture indicators.
  • Large viewing window for better visibility
  • High precision color indicator
  • Provides accurate identification of system conditions
  • Easy to indicate liquid and oil level by float ball of socket type
  • Good corrosion resistance by 2000 hours salt spray for brass material
Product Group : Sight Glasses - Danfoss
Family : SG
Connection Size : 5/8 in, 16 mm Connection Type : Flare
Inlet Connection Size : 5/8 in, 16.00 mm Inlet Interna/lExternal : External
Inlet Type : Flare Outlet Connection Size : 5/8 in, 16.00 mm
Outlet Interna/lExternal : External Outlet Type : Flare
Serviceable : No
Type : SGP 16 N
Commodity Code : 90261089 Country Of Origin : IND
EAN : 5702428818865 Gross Weight : 0.332 kg
Body Material : Brass Connection Material : Brass
Net Weight : 0.31 kg Weight : 0.31 kg
Max Operating Pressure : 52.0 Bar
Refrigerant : R22, R32, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R744, R1233zd(E), R1234yf, R1234ze(E)
Green: Max Moist condition at 25 °C : R22: 30 ppm, R134a: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R507A: 15 ppm, R513A: 22 ppm Green: Max Moist condition at 43 °C : R22: 50 ppm, R134a: 45 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R507A: 30 ppm, R513A: 22 ppm
Moisture Indicator : N indicator Yellow: Min Moist condition at 25 °C : R22: 120 ppm, R134a: 100 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R407F: 168 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R507A: 60 ppm, R513A: 75 ppm
Yellow: Min Moist condition at 43 °C : R134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R507A: 110 ppm
Approval : C UL US LISTED, EAC
Max Temperature : 80 °C Min Temperature : -50 °C
Temperature Range : -50-80 °C
Flow Direction Indicator : N indicator
