Description

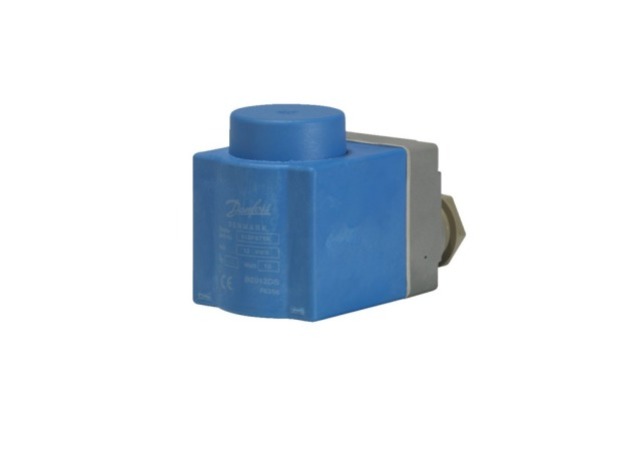

Coil BE230DS 230V DC Box
Danfoss 230VDC 18w Solenoid Coil
Product number:
018F6781
| Product Group : | Industrial Controls - Other |
|---|
General
| Product Group : | Industrial Controls - Other |
|---|
Connections
| Coil Connection Type : | Connection box | Connection Type : | Connection box |
|---|
Electrical
| Electric Connection : | Terminal box | Electric Connection Size : | Pg 13.5 |
|---|---|---|---|
| IP Class : | IP67 | Voltage : | 230 V |
General Information
| Colour : | Blue | Model Number : | S018F6781 |
|---|---|---|---|
| Type : | BE230DS | Used For : | AKV |
Logistical Information
| Commodity Code : | 85059029 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428022941 | Gross Weight : | 0.338 kg |
Measurements
| Net Weight : | 0.31 kg | Weight : | 0.31 kg |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -40-50 °C | Max Ambient Temperature : | 50 °C |
|---|---|---|---|
| Min Ambient Temperature : | -40 °C |
Valves
| Actuator Size : | 13.5 mm |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| data-sheet-solenoid-coils-type-ba-bd-bb-be-bf-bg-bn-bo-bj-bx-by-bq-am-as-az-and-ap-ast-ai247086497610en-001001.pdf | Technical Literature | 15.53 MB | |
| installation-guide-solenoid-coils-types-bb-be-bf-bg-bh-and-bn-ast-an22788644331701-000501.pdf | Installation Manual | 657.31 KB |
