| Product Group : | Driers - Danfoss |
|---|

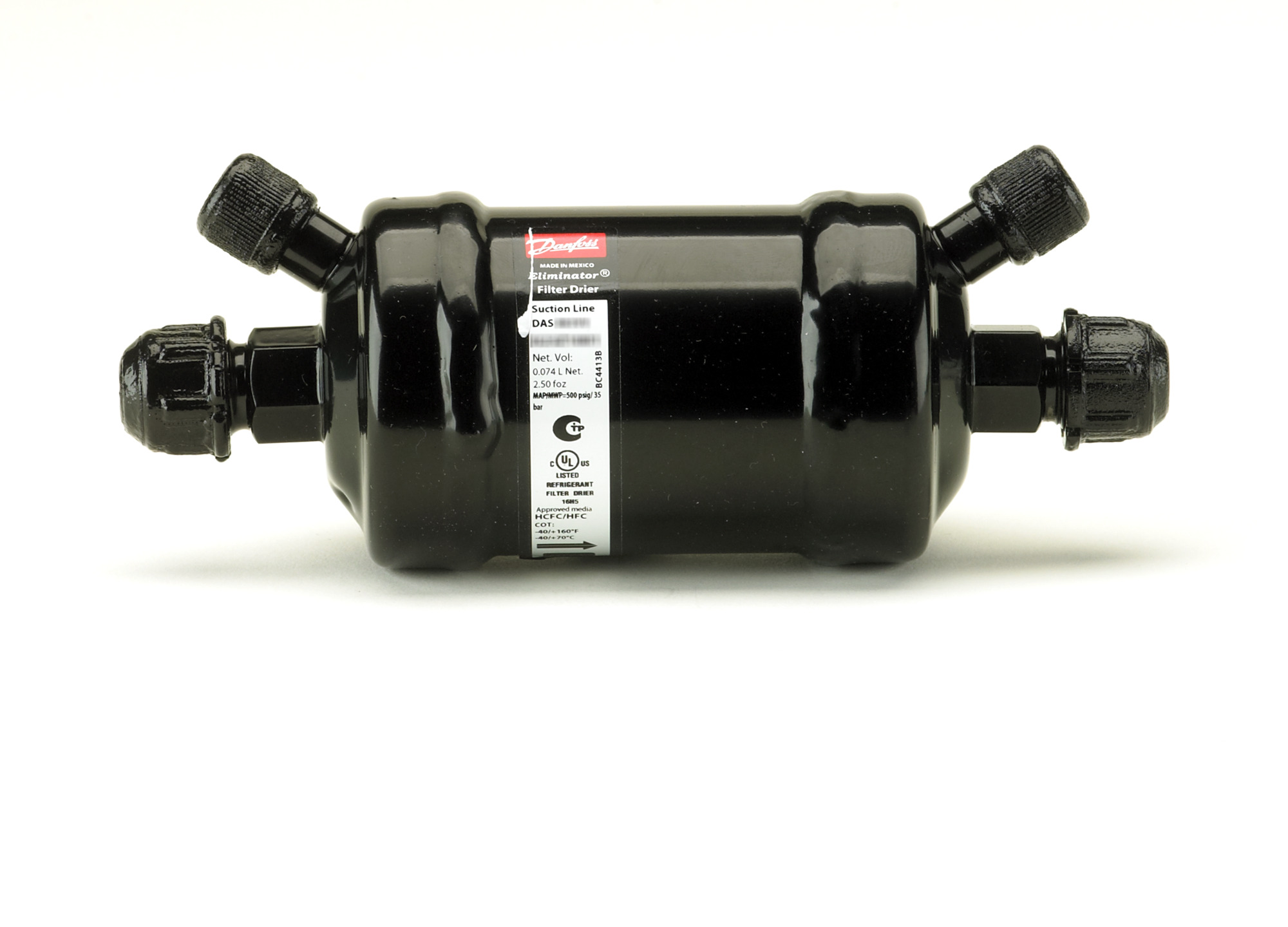

Hermetic burn-out filter driers type DAS are used in the suction line to clean up refrigeration and air conditioning systems after a compressor motor burn-out. The solid core, which is composed of 70% activated alumina and 30% Molecular Sieve, adsorbs harmful acids as well as moisture.
Available with flare and solder (pure copper) connections.
| Product Group : | Driers - Danfoss |
|---|
| Family : | DAS |
|---|
| Acid Capacity : | 8.70 g | Capacity : | R134a: 6.0 kW, R404A: 8.5 kW, R407C: 10.5 kW, R410A: 10.5 kW, R507: 8.5 kW |
|---|
| Inlet Connection Size : | 1/2 in, 12.0 mm | Inlet Type : | Flare |
|---|---|---|---|
| Outlet Connection Size : | 1/2 in, 12.0 mm | Outlet Type : | Flare |
| Core : | Solid core | Core Size : | 16 cu.in. |
|---|---|---|---|
| Flow Capacity Conditions (ARI 730-05) : | Delta p=0.21bar, tevap=4°C | Flow Capacity kW : | R134a: 6.0, R404A: 8.5, R407C: 10.5, R410A: 10.5, R507: 8.5 |
| Shell Volume : | 0.35 L | Solid Core Surface : | 28.34 in², 183 cm² |
| Solid Core Volume : | 7.84 in³, 128 cm³ |
| Drying Capacity 24°C (Drops of Water) : | kW | Drying Capacity 52°C (Drops of Water) : | kW |
|---|
| Activated Alumina / Molec. Sieve. : | 70/30 % | Specification Key : | DAS 164VV |
|---|---|---|---|
| Type : | DAS 164VV |
| Commodity Code : | 84213985 | Country Of Origin : | MEX |
|---|---|---|---|
| EAN : | 5702428160476 | Gross Weight : | 1.012 kg |
| Body Material : | Steel | Connection Material : | Steel |
|---|
| Net Weight : | 0.99 kg | Volume : | 0.226 L |
|---|---|---|---|
| Weight : | 0.99 kg |
| Max Operating Pressure : | 35.0 Bar |
|---|
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R1234yf, R1234ze(E) |
|---|
| Approval : | UL |
|---|
| Max Temperature : | 70 °C | Min Temperature : | -40 °C |
|---|---|---|---|
| Temperature Range : | -40-70 °C |
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
