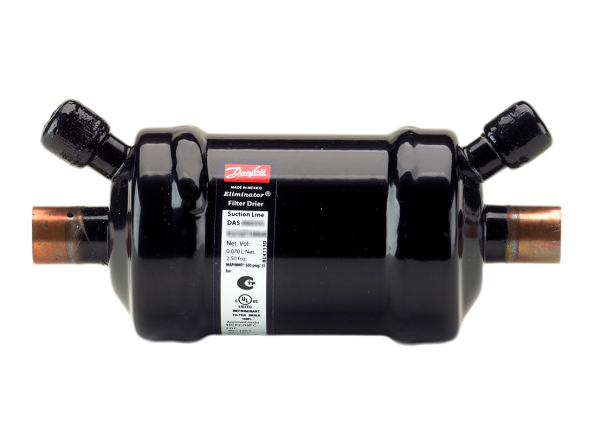

Hermetic burn-out filter driers type DAS are used in the suction line to clean up refrigeration and air conditioning systems after a compressor motor burn-out. The solid core, which is composed of 70% activated alumina and 30% Molecular Sieve, adsorbs harmful acids as well as moisture.
Available with flare and solder (pure copper) connections.
| Product Group : | Driers - Danfoss |
|---|
| Family : | DAS |
|---|
| Acid Capacity : | 8.70 g | Capacity : | R134a: 9.5 kW, R404A: 13.0 kW, R407C: 15.0 kW, R410A: 15.0 kW, R507: 13.0 kW |
|---|
| Connection Size : | 5/8" | Connection Type : | Solder, ODF |
|---|---|---|---|
| Inlet Type : | Solder, ODF | Outlet Type : | Solder, ODF |
| Core : | Solid core | Core Size : | 16 cu.in. |
|---|---|---|---|
| Flow Capacity Conditions (ARI 730-05) : | Delta p=0.21bar, tevap=4°C | Flow Capacity kW : | R134a: 9.5, R404A: 13.0, R407C: 15.0, R410A: 15.0, R507: 13.0 |
| Shell Volume : | 0.35 L | Solid Core Surface : | 28.34 in², 183 cm² |
| Solid Core Volume : | 7.84 in³, 128 cm³ |
| Activated Alumina / Molec. Sieve. : | 70/30 % | Type : | DAS 165SVV |
|---|
| Commodity Code : | 84213985 | Country Of Origin : | MEX |
|---|---|---|---|
| EAN : | 5702428160438 | Gross Weight : | 0.94 kg |
| Body Material : | Steel | Connection Material : | Copper |
|---|
| Net Weight : | 0.86 kg | Volume : | 0.226 L |
|---|---|---|---|
| Weight : | 0.86 kg |
| Max Operating Pressure : | 35.0 Bar |
|---|
| Refrigerant : | R22/R407C, R23, R32, R125, R134a, R290, R404A, R407A, R407F, R410A, R422B, R422D, R438A, R444B, R448A, R449A, R449B, R450A, R452A, R452B, R454B, R455A, R507A, R513A, R600, R1234yf, R1234ze(E) |
|---|
| Approval : | UL |
|---|
| Max Temperature : | 70 °C | Min Temperature : | -40 °C |
|---|---|---|---|
| Temperature Range : | -40-70 °C |
| Flow Direction Indicator : | Label printed 1-way arrow | Fluid Group : | 2 |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eliminator-hermetic-burnout-filter-drier-type-das-ast-an142486435034en-000302.pdf | Installation Manual | 269.51 KB | |
| manufacturer-s-declaration-danfoss-md-023u9601-ah-ast-id365946834721-0401.pdf | Conformity Declaration | 1.83 MB | |
| hermatic-burn-out-filter-drier-ast-ai192386433066en-000801.pdf | Technical Literature | 1.44 MB | |
| mechanical-safety-certificate-ul-sa6398-ast-id366040936109-0201.pdf | Conformity Declaration | 548.69 KB | |
| eliminator-hermetic-burn-out-filter-drier-type-das-ast-ai192386433066en-us0401.pdf | Technical Literature | 582.52 KB | |
| manufacturer-s-declaration-danfoss-md-023z9610-aa-ast-id365946921787-0101.pdf | Conformity Declaration | 245.66 KB |
