Description
ICM 50A - Overhaul kit
Danfoss ICM50A Overhaul Kit
Product number:
027H5180
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
General
| Product Group : | Industrial Controls - Pressure Regulators |
|---|
Additional Info
| Family : | ICM |
|---|
General Information

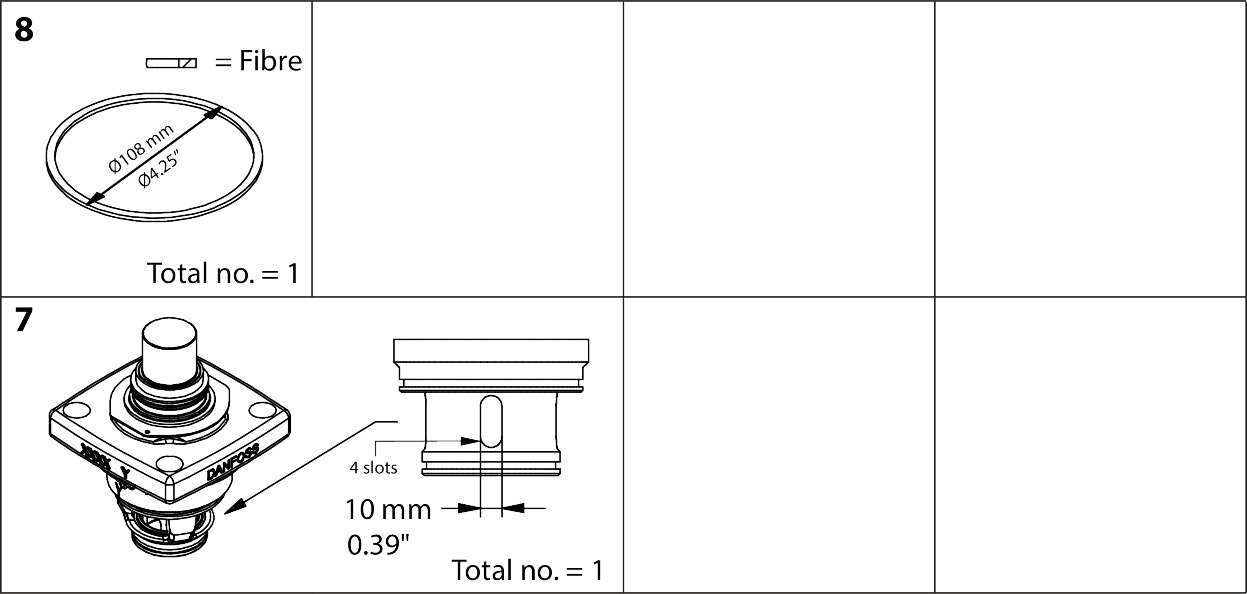

| Parts Included : | Bolts/O-ring, Seat/O-ring | Type : | ICM 50-A |
|---|---|---|---|
| Used For : | ICV 50, ICV 50 body |
Kv Values
| Kv Value : | 23.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84819000 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428237505 | Gross Weight : | 4.96 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Weight : | 4.64 kg |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Valves
| Actuator System : | ICAD motor, magnet coupling | CV Value : | 27.000 gal/min |
|---|---|---|---|
| Valve Operation : | Motor operated |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| overhaul-kit-icm-size-50a-code-number-027h5180-ast-an062286417425en-000101.pdf | Installation Manual | 260.44 KB | |
| data-sheet-spare-parts-and-accessories-valve-station-types-icf-15-icf-evrat-icf-20-icf-25-icf-ss-20-icf-ss-25-icf-50-icf-65-ast-ai242886444256en-001401.pdf | Technical Literature | 3.5 MB | |
| data-sheet-motor-operated-valves-and-actuators-type-icm-and-icad-ast-ai236186442940en-001302.pdf | Technical Literature | 7.99 MB | |
| data-sheet-spare-parts-and-accessories-spare-part-kits-icv-valves-ics-icm-iclx-ast-ai245486497115en-001101.pdf | Technical Literature | 20.35 MB |
