Description

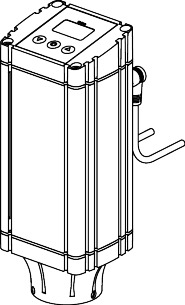

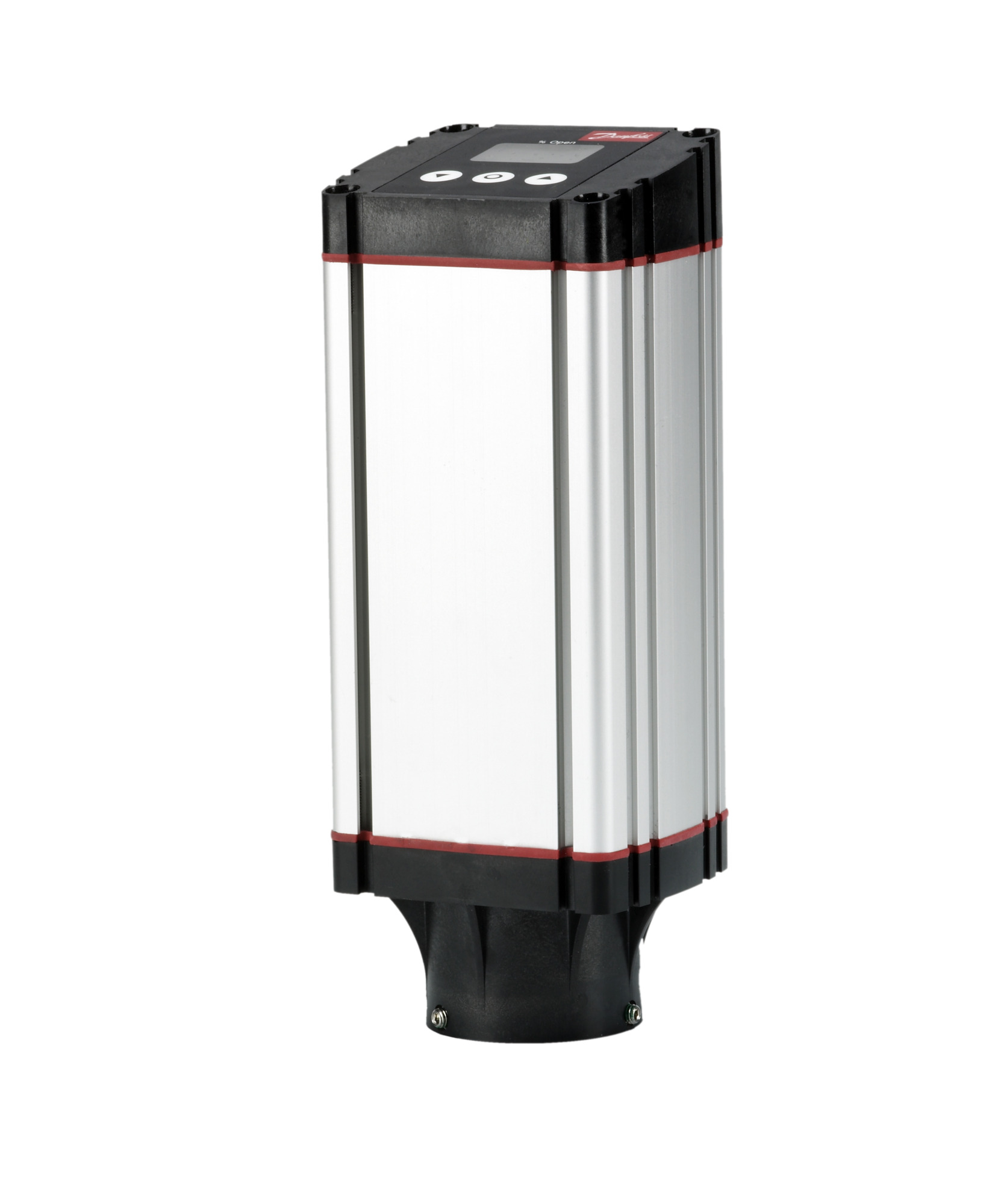

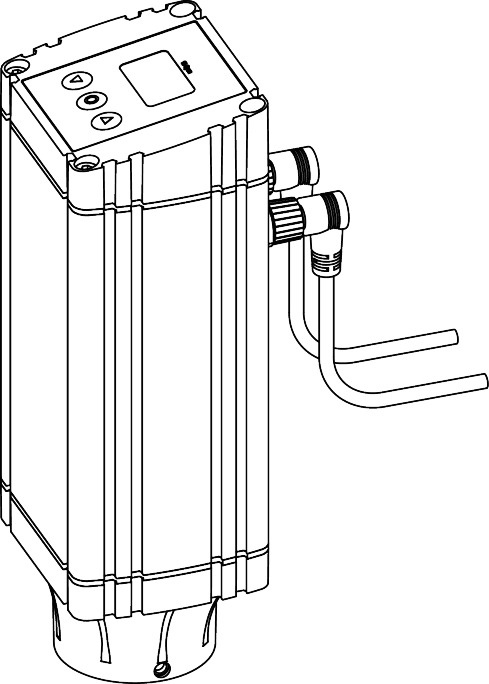

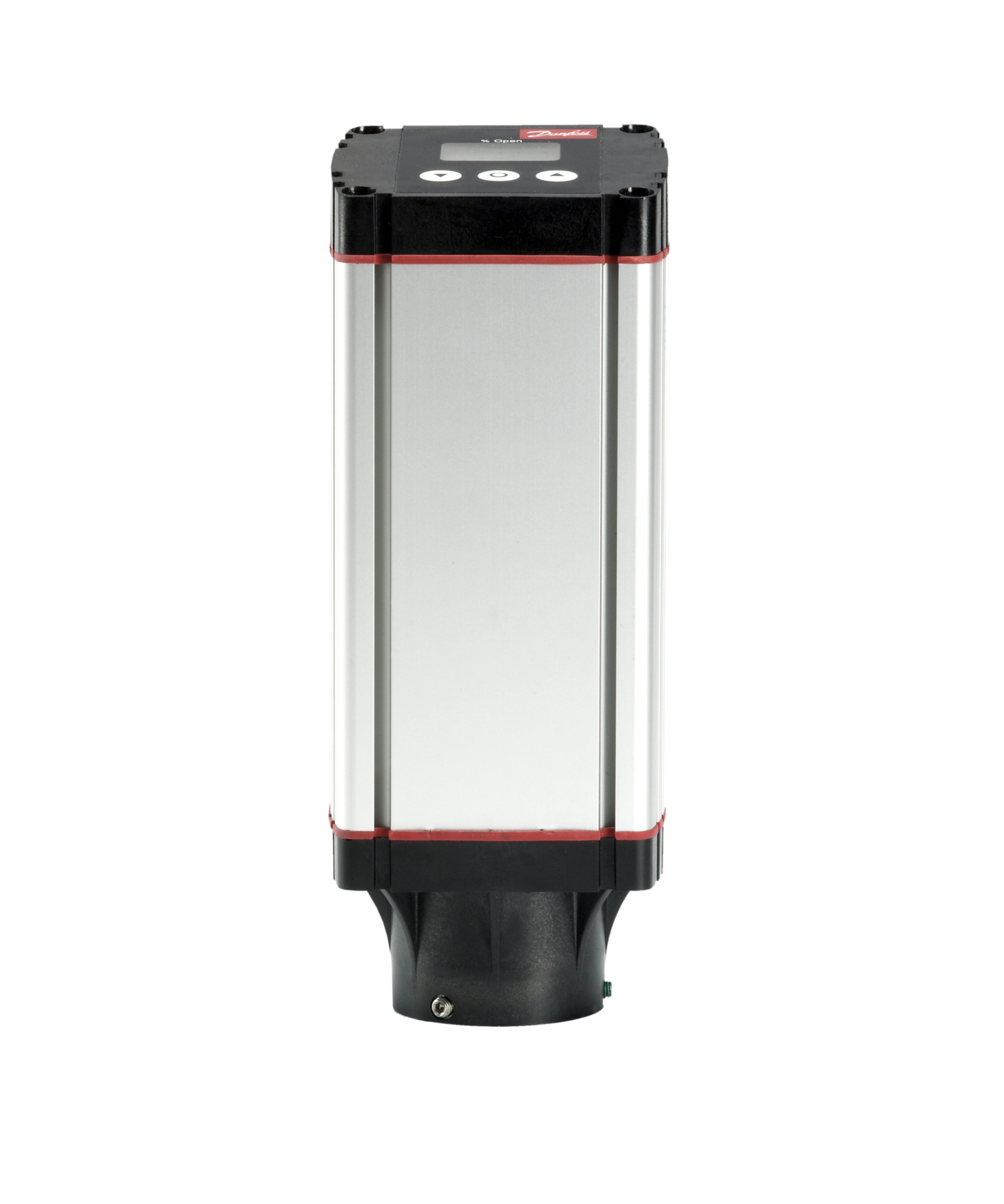

ICAD 1200A Actuator
Danfoss ICAD 1200A Actuator For ICM 40-150 with Encoder
Product number:
027H9077
| Product Group : | Mech Controls - Valves |
|---|
General
| Product Group : | Mech Controls - Valves |
|---|
Additional Info
| Additional Info : | Digital Output: NPN Transistor | Family : | ICM |
|---|
Cable
| Cable Length : | 1.50 m, 60.00 in |
|---|
Electrical
| IP Class : | IP67 |
|---|
General Information
| Model Number : | 027H9077 | Type : | ICAD 1200A |
|---|---|---|---|

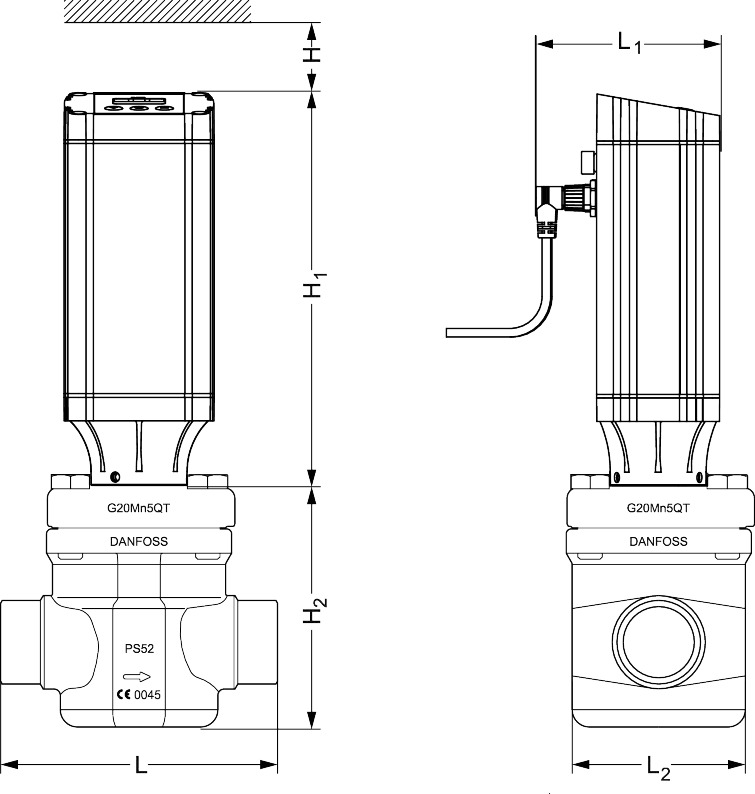

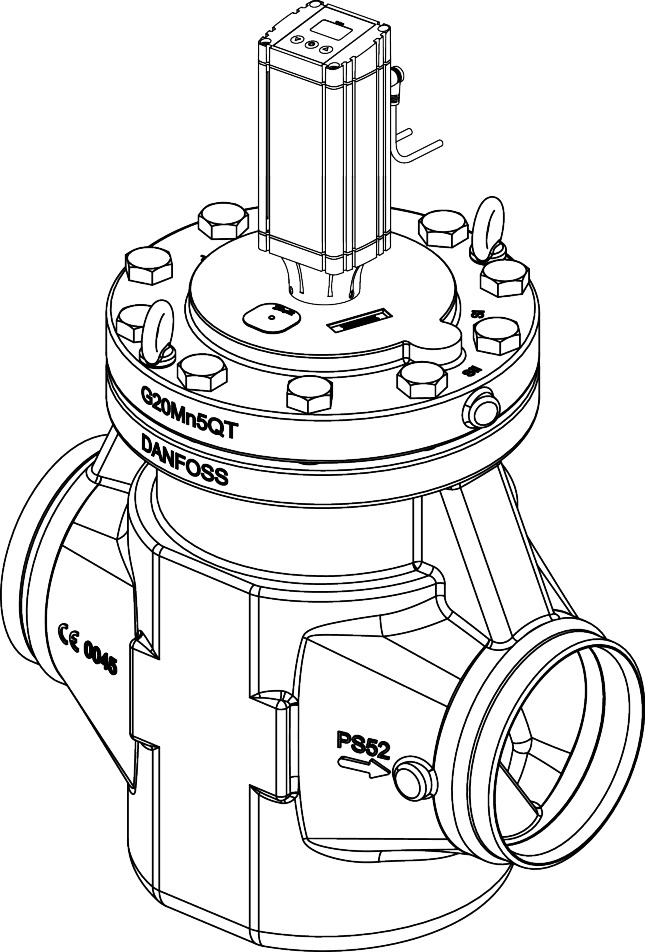

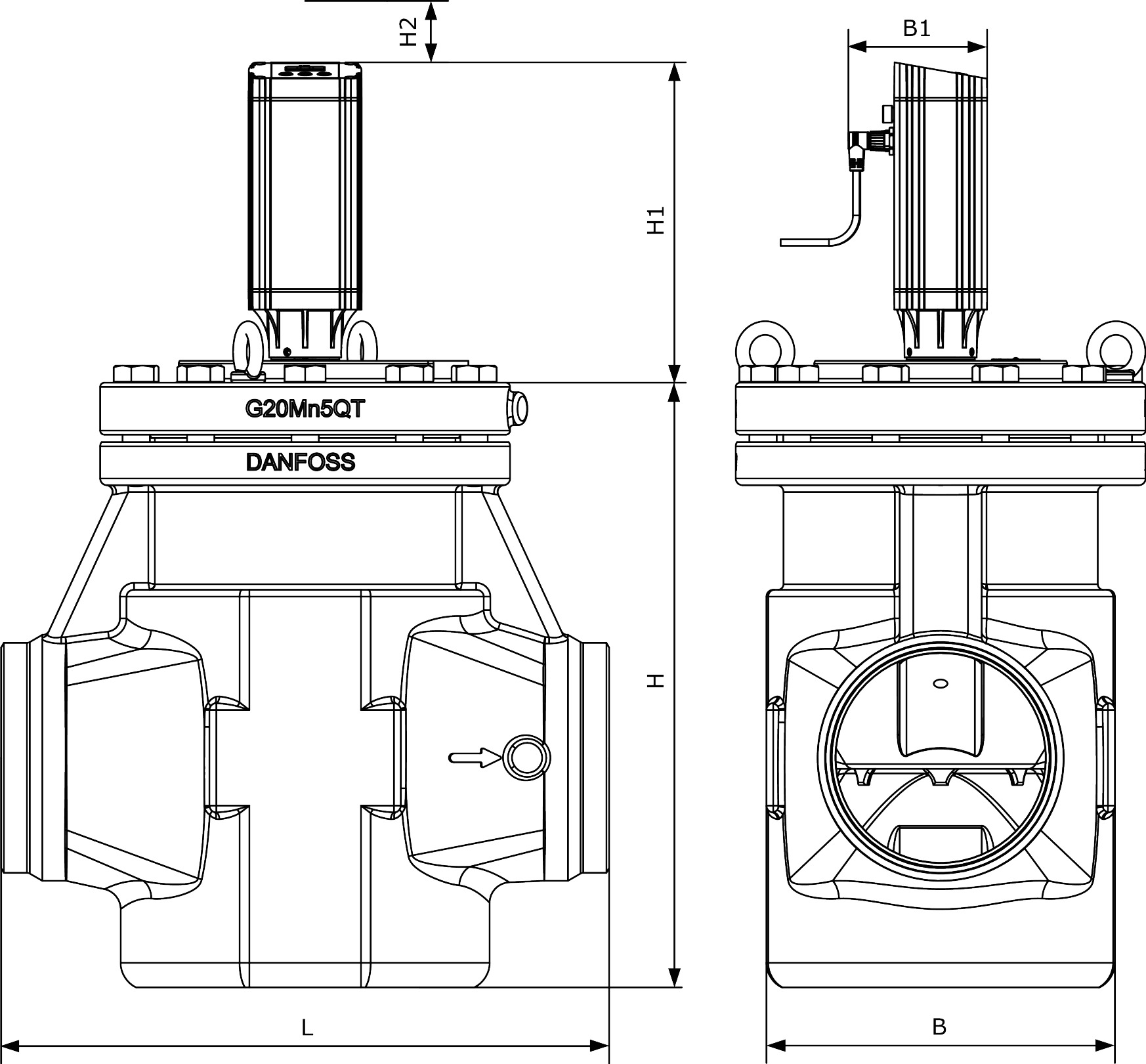

| Used For : | ICM 40; ICM 50; ICM 65; ICM100; ICM125; ICM150 |
Inputs/Outputs
| Digital Outputs (DO) : | 3 pc |
|---|
Logistical Information
| Commodity Code : | 85013100 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428889520 | Gross Weight : | 2.37 kg |
Measurements
| Weight : | 1.89 kg |
|---|
Standards
| Approval : | CE, CRN, EAC, LLC CDC TYSK, UKCA, UL |
|---|
Temperature
| Ambient Temperature Range : | -30-50 °C | Temperature Range : | -30-50 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| actuator---icad-600a-icad-60-ast-an19798642980802-001001.pdf | Installation Manual | 2.48 MB | |
| colour-code-connection-diagram-ast-an149686416736en-000401.pdf | Installation Manual | 411.56 KB | |
| data-sheet-spare-parts-and-accessories-valve-station-types-icf-15-icf-evrat-icf-20-icf-25-icf-ss-20-icf-ss-25-icf-50-icf-65-ast-ai242886444256en-001401.pdf | Technical Literature | 3.5 MB | |
| quick-start-guide-icad-600a-icad-1200a-ast-an213086423355en-000501.pdf | Installation Manual | 1.38 MB |
