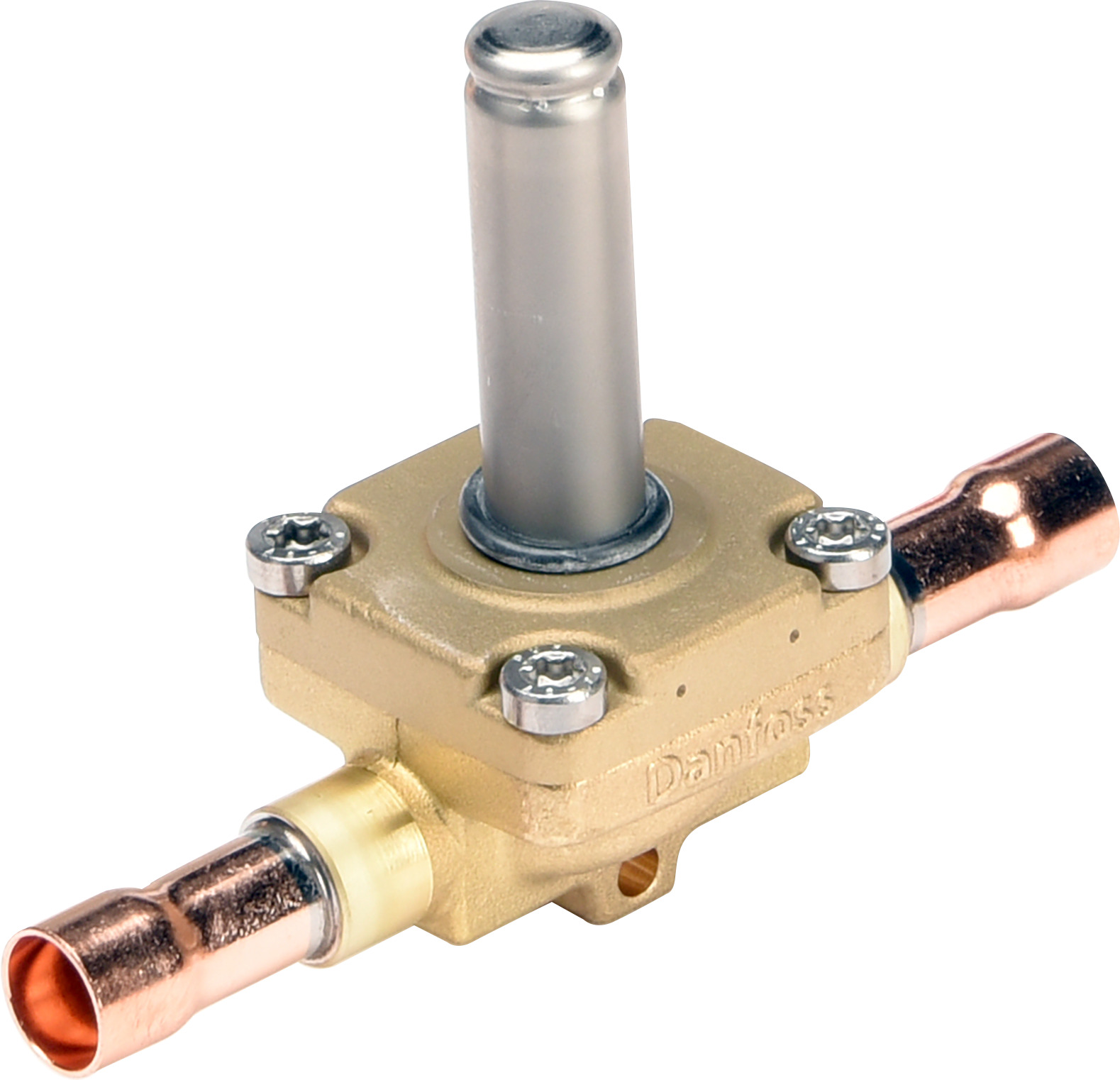

Danfoss Solenoid Valve EVR10 1/2 (Flare)

Danfoss Solenoid Valve EVR10 1/2 (Flare)
Product number: 032L8095
PLEASE LOGIN TO SEE PRICES
Product Group : Solenoid Valves - Danfoss
Description

EVR is a direct or servo operated solenoid valve suitable for liquid, suction, and hot gas lines with most refrigerants, including flammable refrigerants. EVR valves and coils are sold separately.

Features:

  • Complete range of solenoid valves for refrigeration, freezing and air conditioning plant
  • Supplied in versions normally closed (NC) and normally open (NO) with de-energized coil
  • Wide choice of coils for AC and DC
  • Suitable for most refrigerants, including flammable refrigerants
  • Designed for media temperatures up to 105 °C
Product Group : Solenoid Valves - Danfoss
Family : EVR v2
Coil : No
Inlet Connection Size : 1/2 in, 12.00 mm Inlet Type : Flare
Outlet Connection Size : 1/2 in, 12.00 mm Outlet Type : Flare
Function : NC Type : EVR 10
Kv Value : 2.200 m³/h
Commodity Code : 84818059 Country Of Origin : POL
EAN : 5702428952507 Gross Weight : 0.476 kg
Connection Material : Copper
Net Weight : 0.38 kg Weight : 0.38 kg
Max OPD, 10W AC : 38 Bar Max Operating Pressure : 45.2 Bar
Min OPD : 0.030 Bar
Refrigerant : R22, R32, R125, R134a, R152a, R404A, R407A, R407C, R407F, R407H, R410A, R413A, R417A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R1234yf, R1234ze(E)
Approval : EAC, LLC CDC EURO-TYSK, UL
Ambient Temperature : -40 - 80 °C Ambient Temperature Range : -40-80 °C
Medium Temperature Range : -40-105 °C
Actuator Size : 13.5 mm CV Value : 2.600 gal/min
Direction : Straightway Fluid Group : 1, 2
Orifice Size : 10.00 mm Valve Operation : SERVO-DIAPHRAGM
