Description

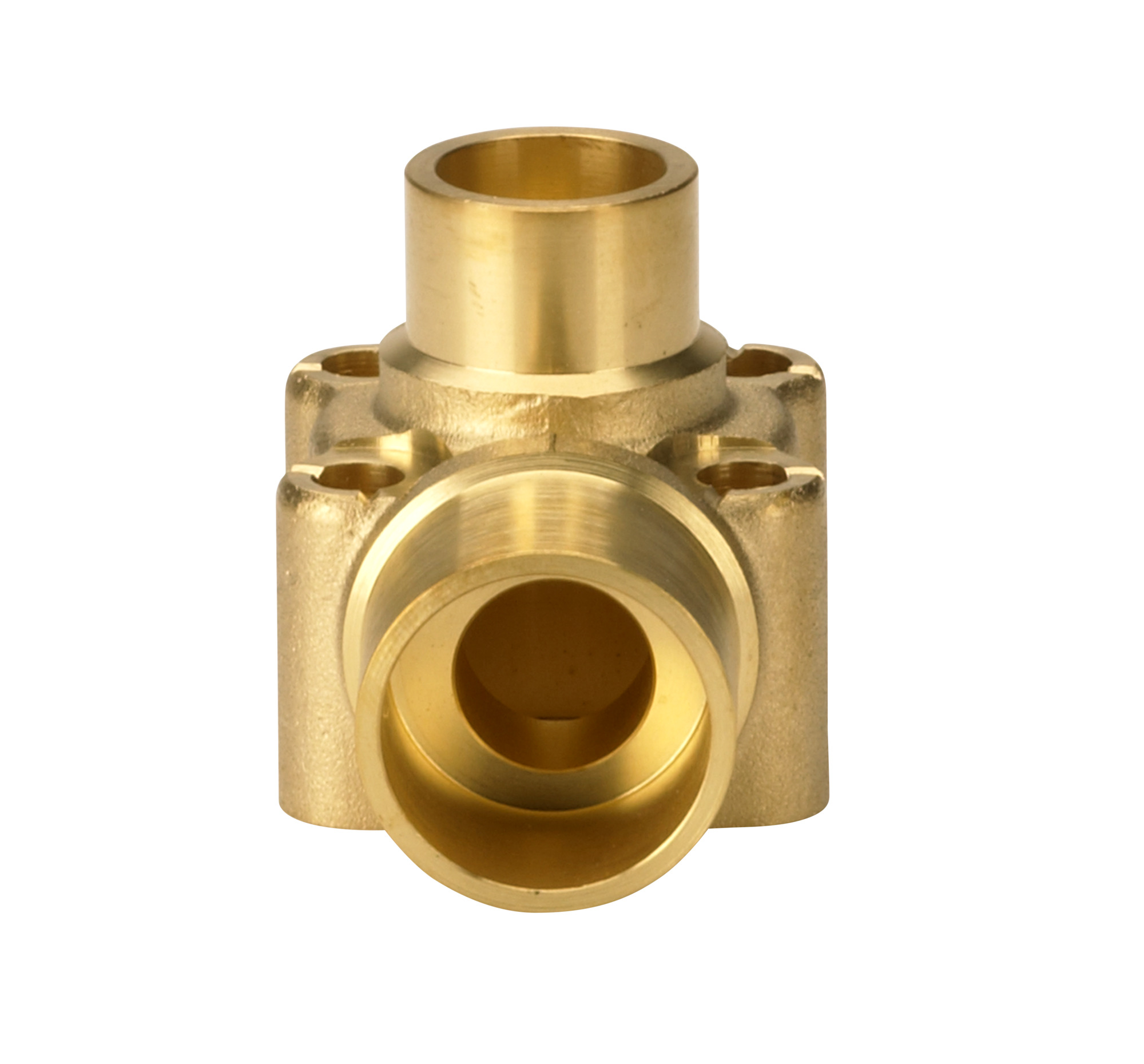

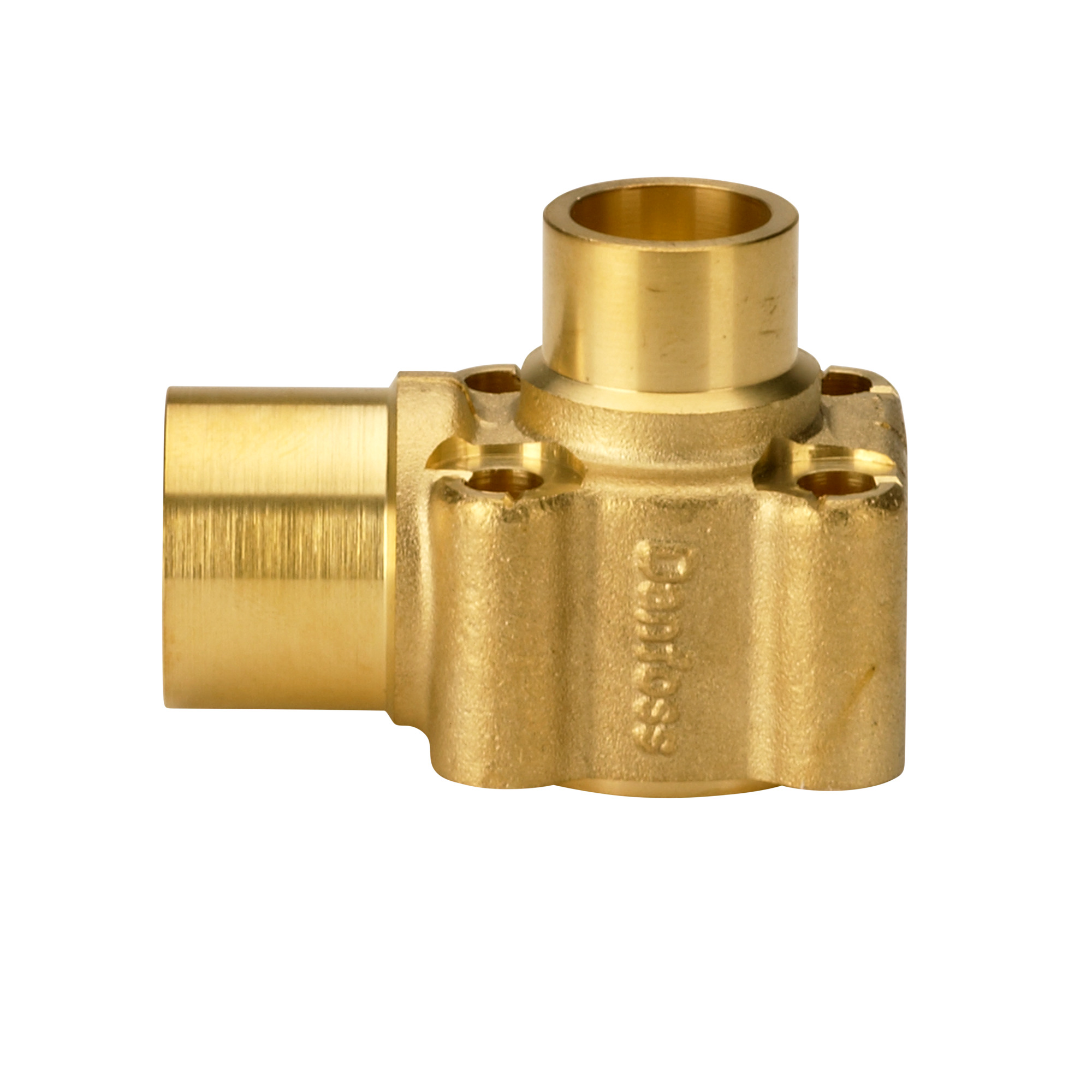

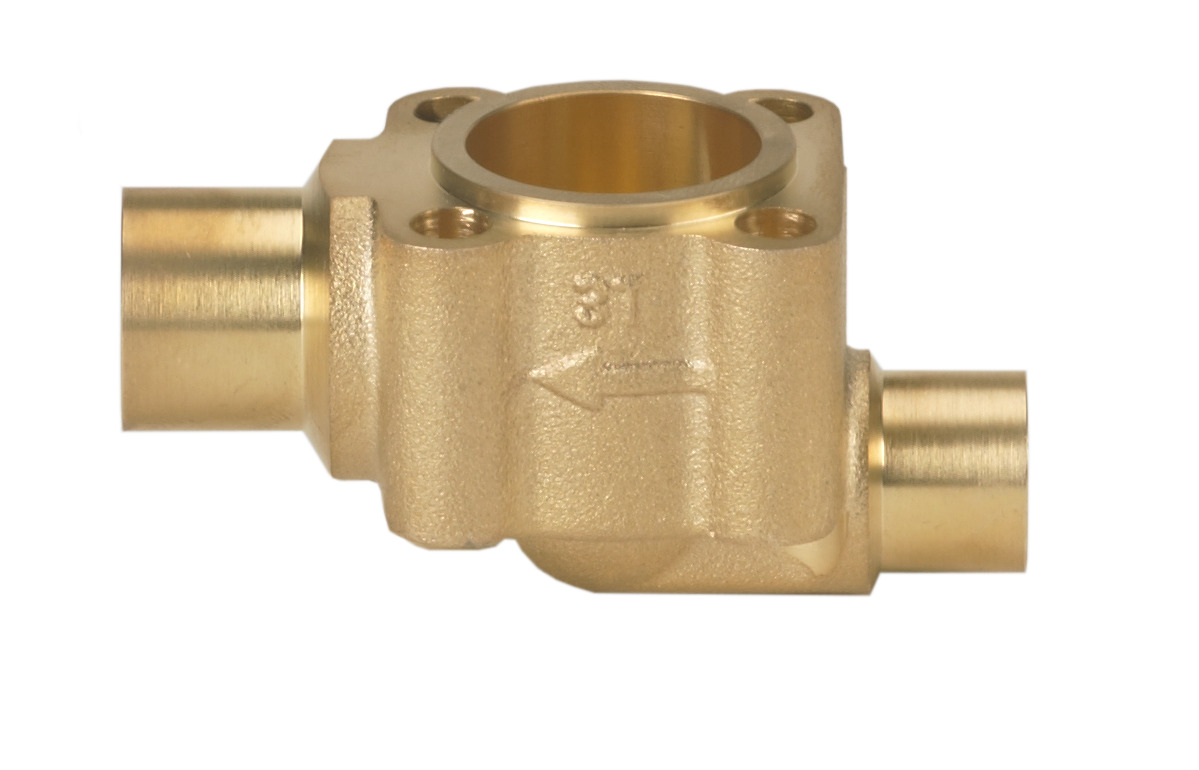

TE 5 Valve Body SS
TE5 Straight Body 5/8in - 7/8out
Product number:
067B4032
| Product Group : | Expansion Valves - Danfoss |
|---|
General
| Product Group : | Expansion Valves - Danfoss |
|---|
Additional Info
| Additional Info : | Screws and washers included | Family : | TE 5 - 55 |
|---|
Connections
| Inlet Connection Size : | 5/8 in | Inlet Type : | Solder, ODF |
|---|---|---|---|
| Outlet Connection Size : | 7/8 in | Outlet Type : | Solder, ODF |
General Information
| Model Number : | 067B4032 | Type : | VALVE BODY |
|---|---|---|---|
| Used For : | TE 5 |
Logistical Information
| Commodity Code : | 84819000 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428286244 | Gross Weight : | 0.428 kg |
Material
| Body Material : | Brass | Connection Material : | Brass |
|---|
Measurements
| Net Weight : | 0.32 kg | Weight : | 0.32 kg |
|---|
Standards
| Approval : | LLC CDC TYSK |
|---|
Valves
| Balanced Port : | No | Direction : | Straightway |
|---|---|---|---|
| Flow Direction : | Single-flow | Flow Direction Indicator : | Embossed 1-way arrow |
| Valve Operation : | Motor operated |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| brochure-overview-brochure-thermostatic-expansion-valves-en-ast-ad135086437198en-000601.pdf | Brochures | 7.14 MB | |
| thermostatic-expansion-valves-type-te-5-te-12-te-20-and-te-55-ast-an020186412218en-000706.pdf | Installation Manual | 878.43 KB |
