Description

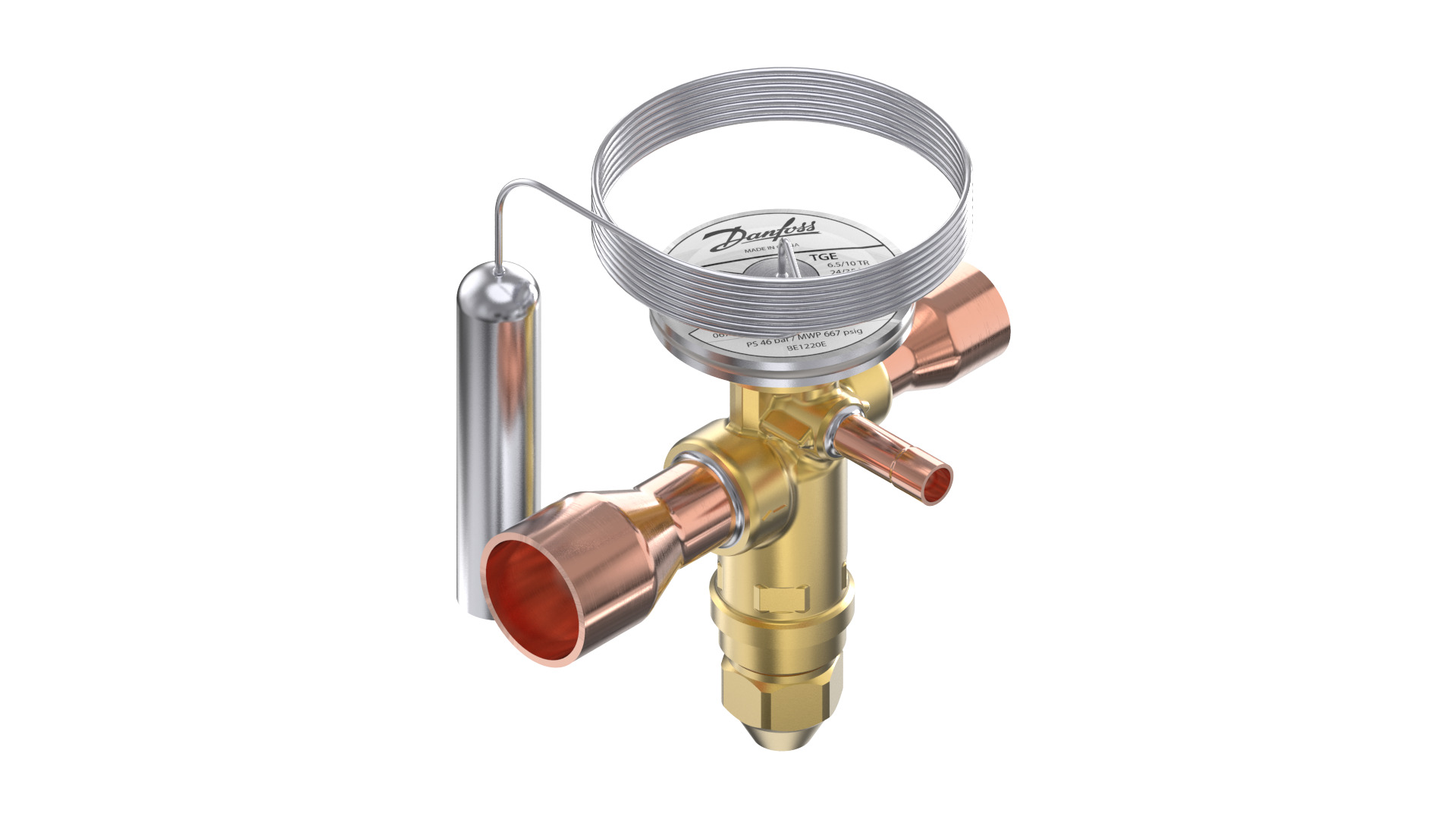

TGE 15 ExpansionValve Solder M/8
TGEZ15 Danfoss Bi Flow 15T Tx valve R407c/R22
Product number:
067N4162
| Product Group : | Expansion Valves - Danfoss |
|---|
General
| Product Group : | Expansion Valves - Danfoss |
|---|
Additional Info
| Family : | TGE |
|---|
Connections
| Equalization Connection Size : | 1/4 in | Equalization Connection Type : | Solder, ODF |
|---|---|---|---|
| Inlet Connection Size : | 7/8 in | Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 1 1/8 in | Outlet Type : | Solder, ODF |
General Information
| Type : | TGE |
|---|
Logistical Information
| Commodity Code : | 84818059 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428167437 | Gross Weight : | 0.759 kg |
Material
| Body Material : | Brass | Connection Material : | Copper |
|---|
Measurements
| Capillary Tube Length : | 59.0 in, 1500 mm | Weight : | 0.65 kg |
|---|
Pressure
| Max Operating Pressure : | 49.0 Bar | Pressure Equalization : | External |
|---|
Refrigerant
| Refrigerant : | R407C |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
Temperature
| Max Bulb Temperature : | 100 °C | Superheat Setting : | Adjustable |
|---|---|---|---|
| Temperature Range : | -40-10 °C |
Valves
| Balanced Port : | Yes | Direction : | Straightway |
|---|---|---|---|
| Flow Direction : | Bi-flow | Flow Direction Indicator : | Embossed 1-way arrow |
| Max Element Temperature : | 110 °C | Max Valve Body Temperature : | 100 °C |
| Orifice Capacities : | 53.00 kW |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| thermostatic-expansion-valve-type-tge-ast-an162086418624en-000901.pdf | Installation Manual | 755.17 KB | |
| thermostatic-expansion-valves-type-tge-ast-ai246186497192en-001001.pdf | Technical Literature | 4.86 MB | |
| manufacturer-s-declaration-danfoss-md-067r1068-af-ast-id365946710628-0301.pdf | Conformity Declaration | 1.46 MB |
