Description

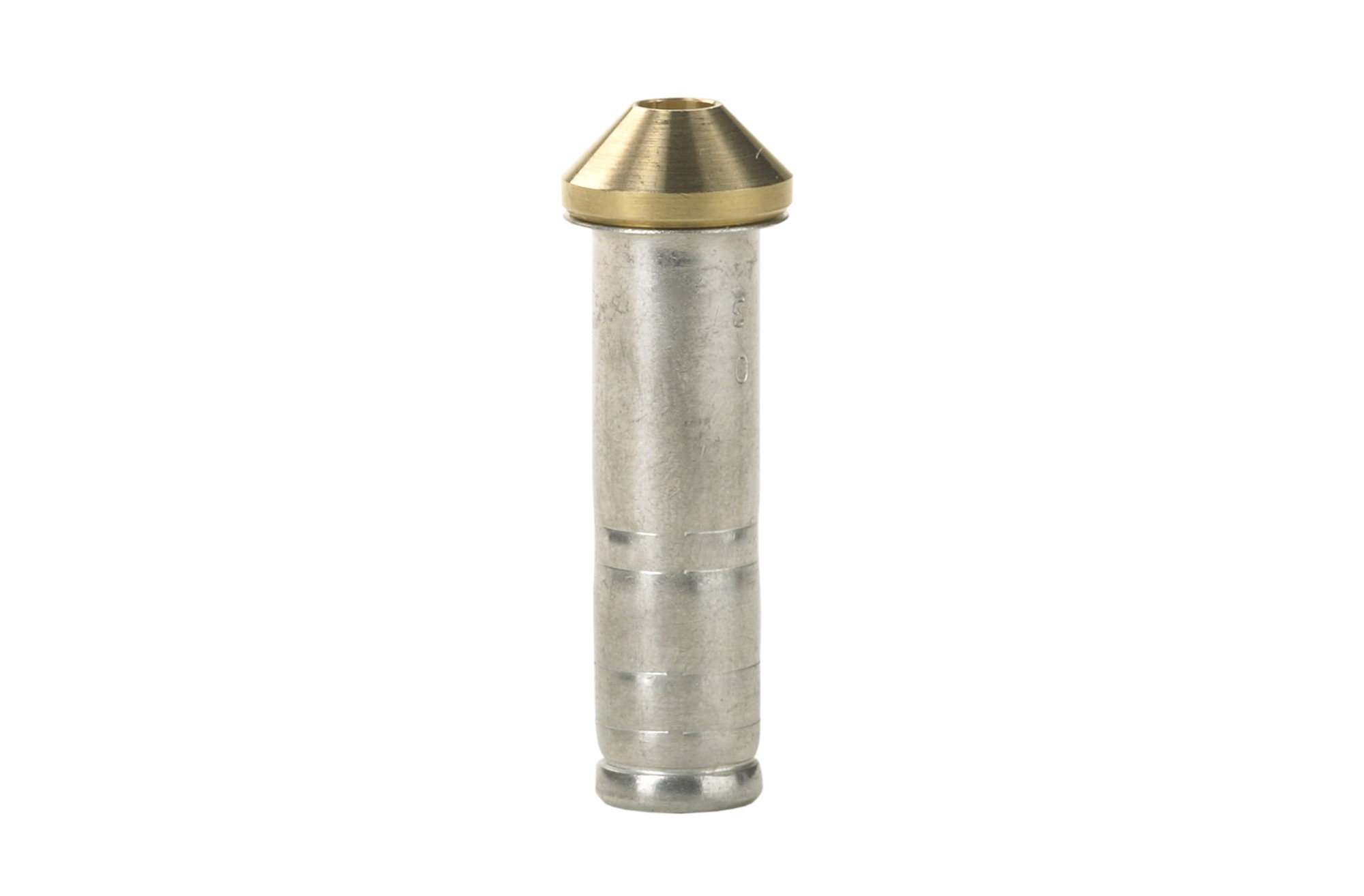

Orifice No 03 for T/TE 2
Danfoss Orifice No. 03
Product number:
068-2006
| Product Group : | Expansion Valves - Danfoss |
|---|
General
| Product Group : | Expansion Valves - Danfoss |
|---|
Additional Info
| Family : | T2 |
|---|
General Information
| Model Number : | 068-2006 | Type : | Orifice |
|---|---|---|---|
| Used For : | T 2, TE 2 |
Logistical Information
| Commodity Code : | 84819000 | Country Of Origin : | DNK |
|---|---|---|---|
| EAN : | 5702422019206 | Gross Weight : | 0.018 kg |
Measurements
| Weight : | 0.01 kg |
|---|
R134A Performances
| R134a Capacity -10°C Range : | 0.76-3.64 kW |
|---|
R404A Performances
| R404A Capacity -10°C Range : | 1.19-4.77 kW | R404A Capacity -30°C Range : | 0.77-3.07 kW |
|---|
R407A Performances
| R407A Capacity -10°C Range : | 1.7-6.8 kW | R407A Capacity -30°C Range : | 1.25-4.98 kW |
|---|
R407C Performances
| R407C Capacity +5°C Range : | 1.97-7.88 kW |
|---|
R450A Performances
| R450A Capacity -10°C Range : | 0.67-2.67 kW |
|---|
Refrigerant
| Refrigerant : | R22, R23, R134a, R236fa, R404A, R407A, R407C, R448A, R449A, R452A, R507A, R513A |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Temperature Range : | -40-10 °C |
|---|
Valves
| Design : | SAE flare only | Fluid Group : | 1 |
|---|---|---|---|
| Orifice : | 3 in | Orifice Size : | 03 |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| brochure-overview-brochure-thermostatic-expansion-valves-en-ast-ad135086437198en-000601.pdf | Brochures | 7.14 MB | |
| service-guide-service-on-ice-machines-with-r404a-type-tu-service-kit-ast-ax217486435877en-us0101.pdf | Technical Literature | 419.93 KB | |
| manufacturer-s-declaration-danfoss-md-068u9615-10-ast-id365946712629-0401.pdf | Conformity Declaration | 454.44 KB |
