| Product Group : | Expansion Valves - Danfoss |
|---|

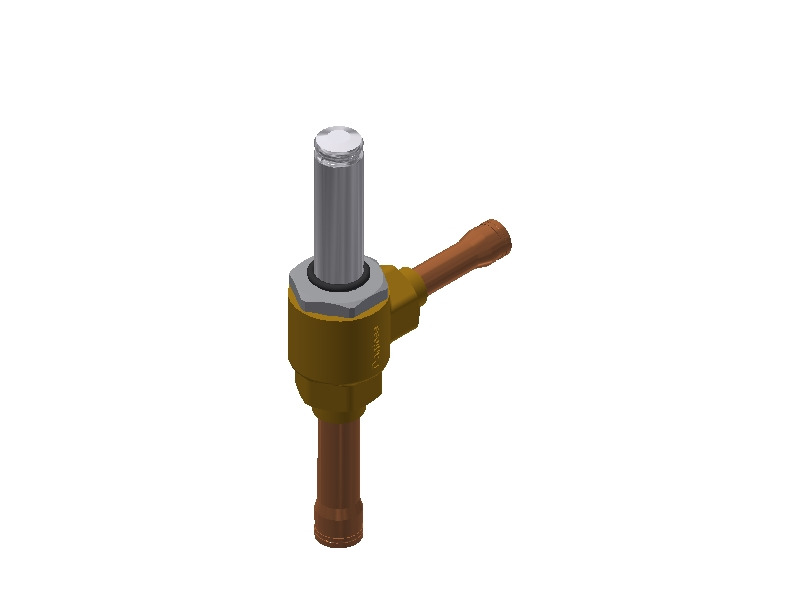

AKV 10P and AKV10PS are electric operated expansion valves designed for refrigeration plants. The AKV 10P and AKV 10PS valves are normally controlled by a controller from Danfoss range of ADAP- KOOL® controllers, that ensures a precise liquid injection into evaporators.
| Product Group : | Expansion Valves - Danfoss |
|---|
| Family : | AKV |
|---|
| Coil : | No |
|---|
| Connection Type : | Solder, ODF | Inlet Connection Size : | 3/8 in |
|---|---|---|---|
| Outlet Connection Size : | 1/2 in |
| Model Number : | 068F5212 | Type : | AKV 10P2 |
|---|
| Kv Value : | 0.015 m³/h |
|---|
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428669986 | Gross Weight : | 0.346 kg |
| Net Weight : | 0.3 kg | Weight : | 0.30 kg |
|---|
| Max Operating Pressure : | 90 Bar |
|---|
| Refrigerant : | R22, R23, R32, R134a, R290, R404A, R407A, R407C, R407F, R410A, R422D, R438A, R448A, R449A, R450A, R452A, R452B, R455A, R507A, R513A, R600a, R744, R1233zd, R1234yf, R1234ze, R1270 |
|---|
| Approval : | C UL US LISTED, EAC, LLC CDC EURO-TYSK |
|---|
| Medium Temperature Range : | -50-60 °C |
|---|
| MOPD : | 35 Bar | Orifice Size : | 0.65 mm |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| electric-expansion-valve-types-akv-10p-akv-10ps-ast-an27354896677000-000403.pdf | Installation Manual | 1.18 MB | |
| manufacturer-s-declaration-danfoss-md-033f0687-ah-ast-id365946847730-0201.pdf | Conformity Declaration | 1.12 MB | |
| manufacturer-s-declaration-danfoss-md-033f1035-ao-ast-id365946671597-0501.pdf | Conformity Declaration | 484.01 KB | |
| electric-expansion-valve-type-akv-10p-and-akv-10ps-ast-ai274942819146en-000604.pdf | Technical Literature | 13.34 MB |
