| Product Group : | Expansion Valves - Danfoss |
|---|

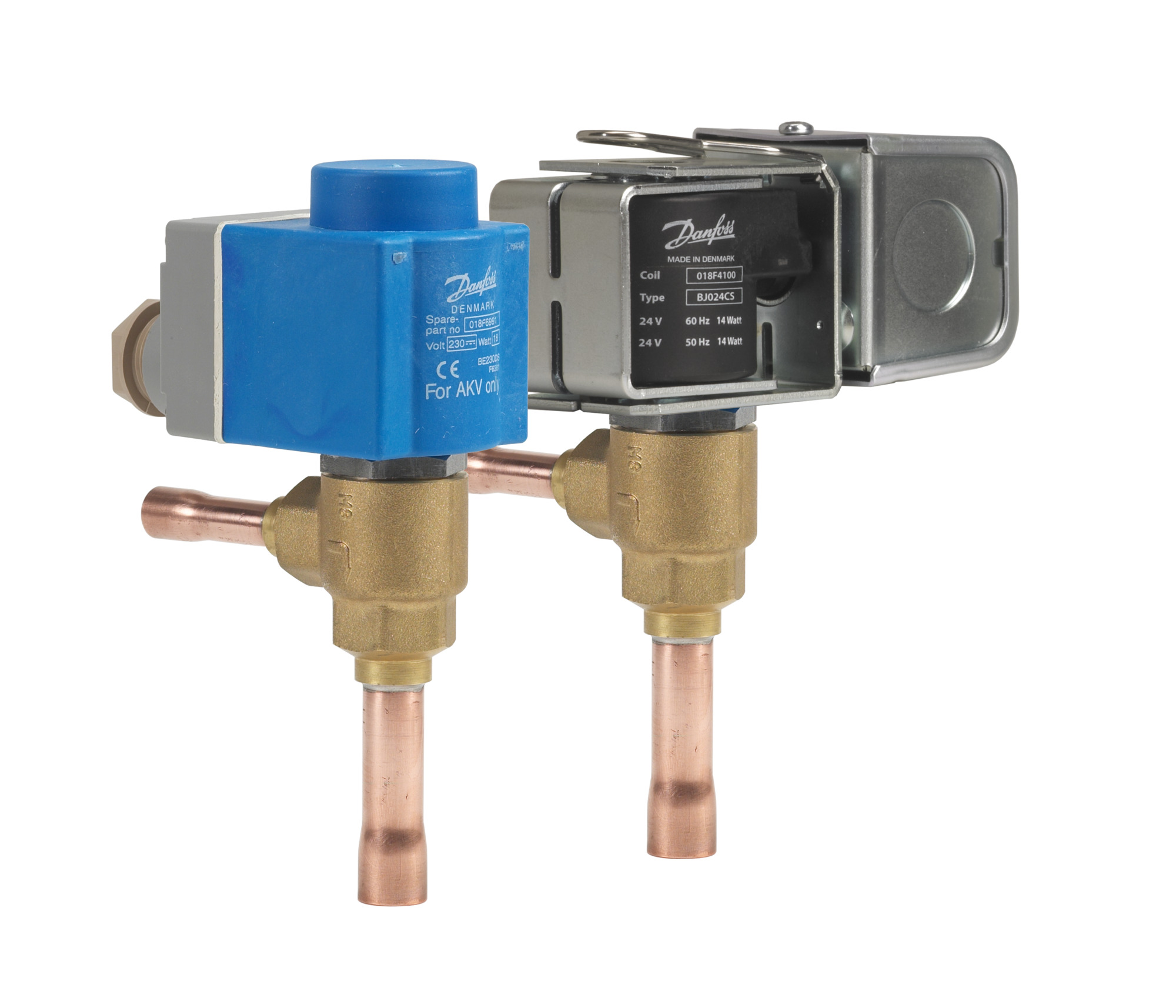

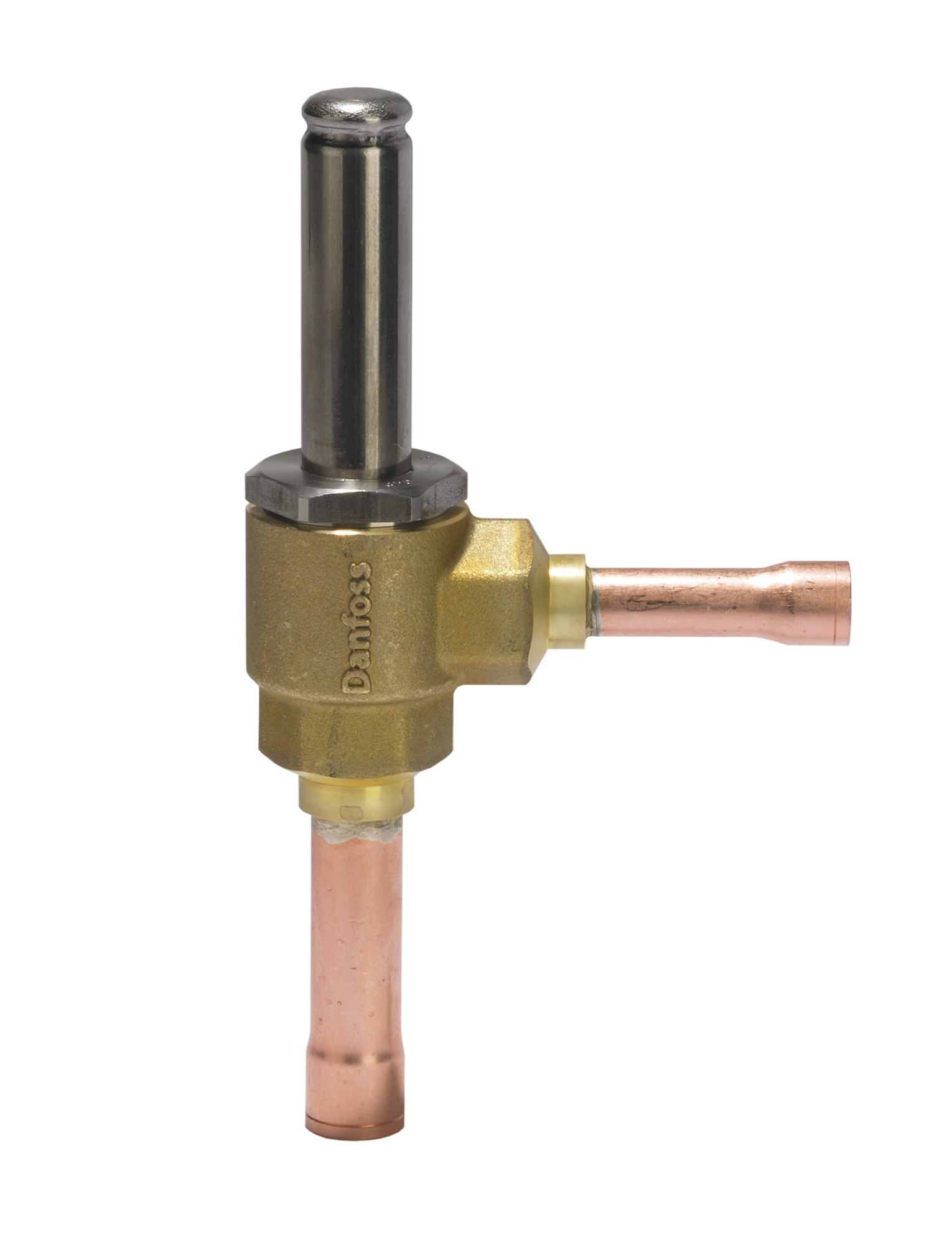

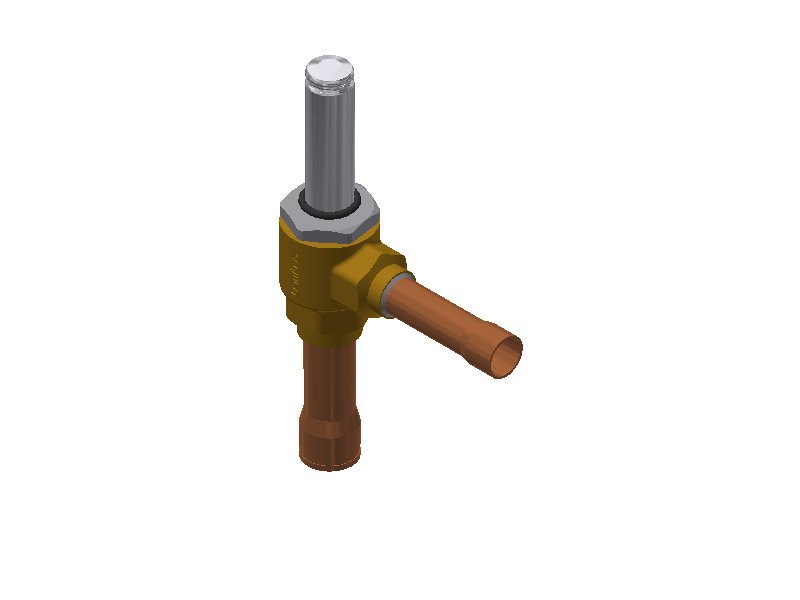

AKV 10P and AKV10PS are electric operated expansion valves designed for refrigeration plants. The AKV 10P and AKV 10PS valves are normally controlled by a controller from Danfoss range of ADAP- KOOL® controllers, that ensures a precise liquid injection into evaporators.
| Product Group : | Expansion Valves - Danfoss |
|---|
| Family : | AKV |
|---|
| Coil : | No |
|---|
| Connection Type : | Solder, ODF | Inlet Connection Size : | 1/2 in |
|---|---|---|---|
| Outlet Connection Size : | 5/8 in, 16 mm |
| Manual Operation Option : | No | Model Number : | 068F5217 |
|---|
| Kv Value : | 0.19 m³/h |
|---|
| Commodity Code : | 84818059 | Country Of Origin : | POL |
|---|---|---|---|
| EAN : | 5702428669931 | Gross Weight : | 0.352 kg |
| Net Weight : | 0.31 kg | Weight : | 0.310 kg |
|---|
| Max Operating Pressure : | 90.0 Bar | Min OPD : | 0.000 Bar |
|---|
| R22 Rated Capacity : | 16.00 kW |
|---|
| Refrigerant : | R22, R23, R32, R134a, R290, R404A, R407A, R407C, R407F, R410A, R422D, R438A, R448A, R449A, R450A, R452A, R452B, R455A, R507A, R513A, R600a, R744, R1233zd, R1234yf, R1234ze, R1270 | UL Approved Refrigerants : | R22, R23, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454A, R463A, R507A, R513A, R513B, R515A, R515B, R516A, R744, R1233zd(E) |
|---|
| Approval : | C UL US LISTED, EAC, LLC CDC EURO-TYSK |
|---|
| Medium Temperature Range : | -50-60 °C |
|---|
| CV Value : | 0.21 gal/min | MOPD : | 18 Bar |
|---|---|---|---|
| Orifice Size : | 2.3 mm |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-033f0688-aj-ast-id365934584249-0701.pdf | Conformity Declaration | 315.47 KB | |
| electric-expansion-valve-types-akv-10p-akv-10ps-ast-an27354896677000-000403.pdf | Installation Manual | 1.18 MB | |
| manufacturer-s-declaration-danfoss-md-033f0687-ah-ast-id365946847730-0201.pdf | Conformity Declaration | 1.12 MB | |
| manufacturer-s-declaration-danfoss-md-033f1035-ao-ast-id365946671597-0501.pdf | Conformity Declaration | 484.01 KB | |
| electric-expansion-valve-type-akv-10p-and-akv-10ps-ast-ai274942819146en-000604.pdf | Technical Literature | 13.34 MB |
