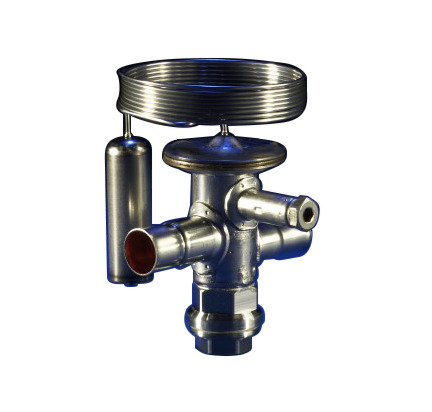

"Danfoss TX Valve TUA R134A"
Item Number:
068U2205
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Product Group : | Expansion Valves - Danfoss |
| Refrigerant : | R134a, R513A |
General Information
| Model Number : | 068U2205 |
|---|---|
| Product Group : | Expansion Valves - Danfoss |
| Type : | TUA |
Additional Info
| Family : | TU/TC |
|---|
Connections
| Connection Size : | 3/8 x 1/2 in |
|---|---|
| Connection Type : | Solder |
| Inlet Connection Size : | 3/8 in |
| Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 1/2 in |
| Outlet Type : | Solder, ODF |
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702422180647 |
| Gross Weight : | 0.184 kg |
Material
| Body Material : | Stainless Steel |
|---|---|
| Connection Material : | Steel/Copper |
Measurements
| Capillary Tube Length : | 59.0 in, 1500 mm |
|---|---|
| Net Weight : | 0.15 kg |
| Weight : | 0.15 kg |
Pressure
| Max Operating Pressure : | 34.0 Bar |
|---|---|
| Pressure Equalization : | Internal |
Refrigerant
| Refrigerant : | R134a, R513A |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK, UL |
|---|
Temperature
| Max Temperature : | 10 °C |
|---|---|
| Min Temperature : | -40 °C |
| Static Superheat : | 4 °C |
| Superheat Setting : | Adjustable |
| Temperature Range : | -40-10 °C |
Valves
| Direction : | Straightway |
|---|---|
| Flow Direction : | Single-flow |
| Flow Direction Indicator : | Laser engraved 1-way arrow |
| Fluid Group : | 2 |
Product information
The thermostatic expansion valves TUA/TUAE, TCAE with exchangeable orifice, TUB/TUBE/ TCBE with fixed orifice and TUC/TUCE/TCCE with fixed orifice and fixed superheat setting, are made of stainless steel and therefore especially well-suited to refrigeration systems in the food industry and where aggressive environments exist.
These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.
