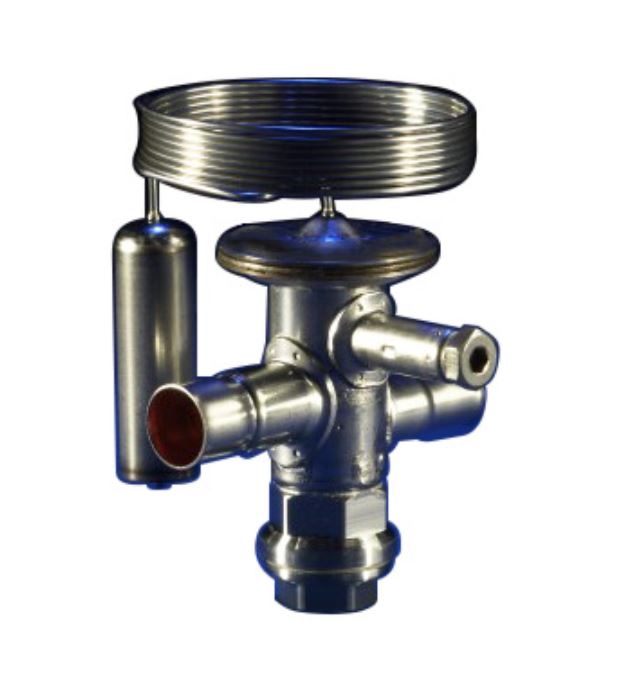

"Danfoss TX Valve TUA R22"

Product number: 068U2235

PLEASE LOGIN TO SEE PRICES

Further products

Product Group :	Expansion Valves - Danfoss

Description

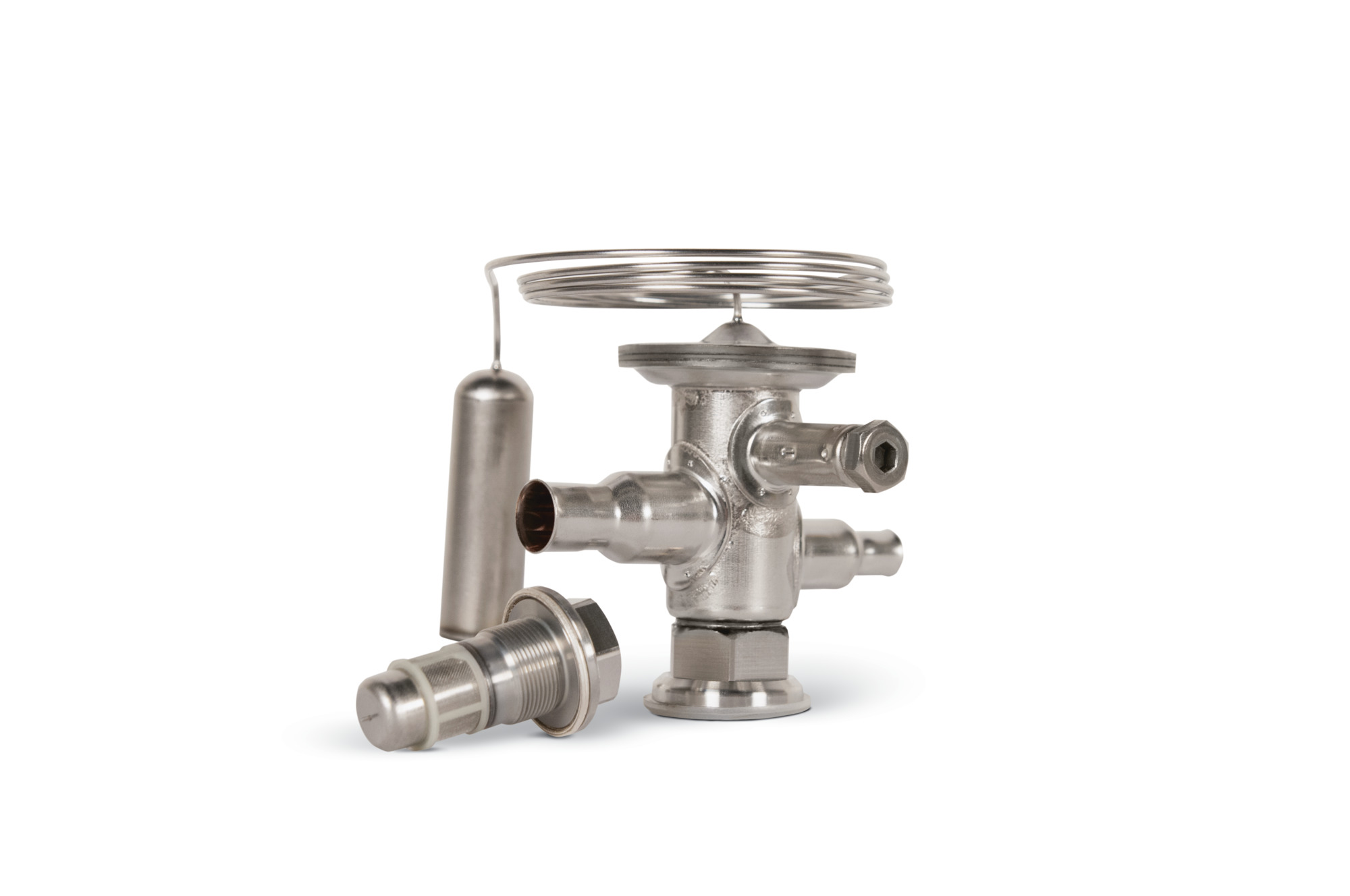

The thermostatic expansion valves TUA/TUAE, TCAE with exchangeable orifice, TUB/TUBE/ TCBE with fixed orifice and TUC/TUCE/TCCE with fixed orifice and fixed superheat setting, are made of stainless steel and therefore especially well-suited to refrigeration systems in the food industry and where aggressive environments exist.

These thermostatic expansion valves have been developed and designed especially for easy and quick soldering into hermetic refrigeration systems.

General

Product Group :	Expansion Valves - Danfoss

Additional Info

Family :	TU/TC

Connections

Connection Size :	3/8 x 1/2 in	Inlet Connection Size :	3/8 in
Inlet Type :	Solder, ODF	Outlet Connection Size :	1/2 in
Outlet Type :	Solder, ODF

General Information

Model Number :	068U2235	Type :	TUA

Logistical Information

Commodity Code :	84818059	Country Of Origin :	DNK
EAN :	5702422182665	Gross Weight :	0.186 kg

Material

Body Material :	Stainless Steel	Connection Material :	Steel/Copper

Measurements

Capillary Tube Length :	59.0 in, 1500 mm	Weight :	0.15 kg

Pressure

Max Operating Pressure :	34.0 Bar	Pressure Equalization :	Internal

Refrigerant

Refrigerant :	R22, R407C

Standards

Approval :	EAC, LLC CDC TYSK, UL

Temperature

Superheat Setting :	Adjustable	Temperature Range :	-40-10 °C

Valves

Direction :	Straightway	Flow Direction :	Single-flow
Flow Direction Indicator :	Laser engraved 1-way arrow	Fluid Group :	2

File name	Document Type	Extension	Size
brochure-overview-brochure-thermostatic-expansion-valves-en-ast-ad135086437198en-000601.pdf	Brochures	pdf	7.14 MB
manufacturer-s-declaration-danfoss-md-068u9616-03-ast-id365946718634-0201.pdf	Conformity Declaration	pdf	266.93 KB
thermostatic-expansion-valve-type-tu-and-tc-ast-ai308624347152en-000301.pdf	Technical Literature	pdf	7.4 MB
orifice-tua-tuae-and-tcae-ast-an00518641360300-000301.pdf	Installation Manual	pdf	624.19 KB
eu-declaration-danfoss-eu-068u9903-01-ast-id365935395440-0201.pdf	Conformity Declaration	pdf	55.78 KB
service-guide-service-on-ice-machines-with-r404a-type-tu-service-kit-ast-ax217486435877en-us0101.pdf	Technical Literature	pdf	419.93 KB
thermostatic-expansion-valve-type-tu-and-tc-ast-ai308624347152en-000302.pdf	Technical Literature	pdf	7.4 MB
manufacturer-s-declaration-danfoss-md-068u9615-10-ast-id365946712629-0401.pdf	Conformity Declaration	pdf	454.44 KB

Spare Part

TUA Orifice No 0 Danfoss

Product Number: 068U1030

Manufacturer Code: 068U1030

TUA Orifice No 1 Danfoss

Product Number: 068U1031

Manufacturer Code: 068U1031

TUA Orifice No 2 Danfoss

Product Number: 068U1032

Manufacturer Code: 068U1032

TUA Orifice No 3 Danfoss

Product Number: 068U1033

Manufacturer Code: 068U1033

TUA Orifice No 4 Danfoss

Product Number: 068U1034

Manufacturer Code: 068U1034

TUA Orifice No 5 Danfoss

Product Number: 068U1035

Manufacturer Code: 068U1035

TUA Orifice No 6 Danfoss

Product Number: 068U1036

Manufacturer Code: 068U1036

TUA Orifice No 7 Danfoss

Product Number: 068U1037

Manufacturer Code: 068U1037

TUA Orifice No 8 Danfoss

Product Number: 068U1038

Manufacturer Code: 068U1038

TUA Orifice No 9 Danfoss

Product Number: 068U1039

Manufacturer Code: 068U1039
