Description

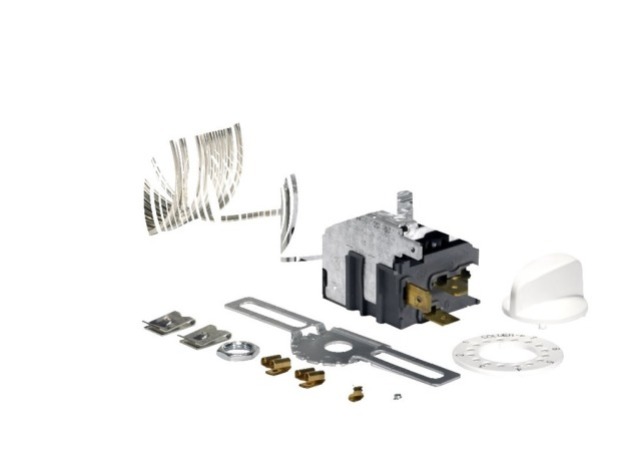

077B Service thermostat no. 4
Danfoss T/Stat No 4
Product number:
077B7004
| Product Group : | Mech Controls - Temperature |
|---|
General
| Product Group : | Mech Controls - Temperature |
|---|
Additional Info
| Family : | 077B |
|---|
Electrical
| Contact Function : | NC |
|---|
General Information
| Type : | B02 | Used For : | Absorption coolers |
|---|
Logistical Information
| Commodity Code : | 90321080 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702424006587 | Gross Weight : | 0.14 kg |
Measurements
| Capillary Tube Length : | 59.1 in, 1500 mm | Net Weight : | 0.11 kg |
|---|---|---|---|
| Weight : | 0.11 kg |
Standards
| Approval : | BEAB, CE, EAC, LLC CDC TYSK, cURus |
|---|
Temperature
| Cold Cut In : | -5.5 °C | Cold Cut Out : | -11.0 °C |
|---|---|---|---|
| Warm Cut In : | 3.5 °C | Warm Cut Out : | -1.0 °C |
