Description

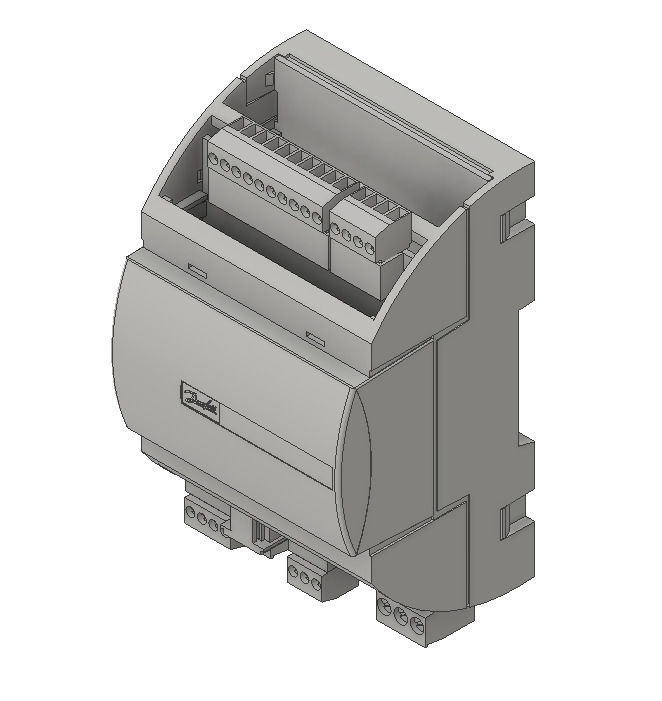

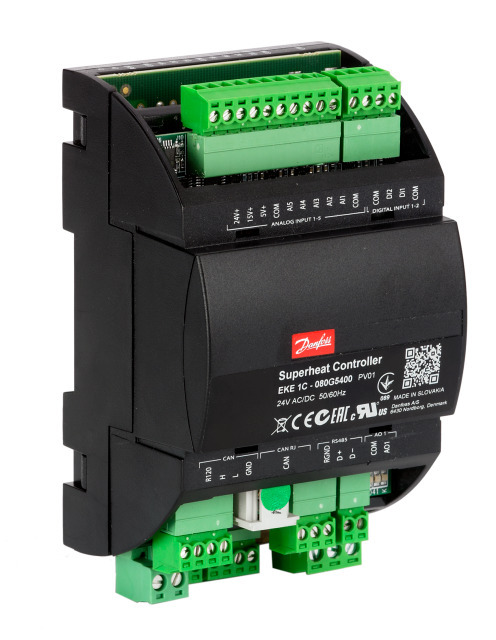

EKE 1C Superheat controller
EKE1C Super heat controller - EKC/EKD313/316
Product number:
080G5400
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Additional Info : | Shared power supply; Signal share via hardwire | Family : | EKE |
|---|
Display
| Display On Front : | No | Display Option : | MMIGRS2 |
|---|
Electrical
| Frequency : | 50/60 Hz | Power Supply : | 24 V |
|---|---|---|---|
| Voltage : | 24 V |
Features
| Product Features : | Alarm management, Capacity signal from master, Defrost Sequence, Ext reference, temp/SH control, Limitation functions, Manual operation, Preset OD, Reversible system with 1 EXV, Service mode, Start up, Superheat reference, Valve driver: Reference of OD |
|---|
General Information
| Model Number : | EKE 1C |
|---|
Inputs/Outputs
| Digital Inputs (DI) : | 2 pc | Digital Outputs (DO) : | 1 pc |
|---|
Logistical Information
| Commodity Code : | 85371010 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702428964333 | Gross Weight : | 0.292 kg |
Measurements
| Net Weight : | 0.17 kg | Weight : | 0.17 kg |
|---|
Mounting
| Mounting Details : | DIN rail |
|---|
Standards
| Approval : | C-TICK, CE, EAC, LLC CDC EURO-TYSK, RoHS, UKCA |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| superheat-controller-type-eke-1a-eke-1b-eke-1c-ast-ai197986442906en-000501.pdf | Technical Literature | 12.78 MB | |
| electronic-superheat-controller-type-eke-1c-ast-an269954243889en-000903.pdf | Installation Manual | 3.66 MB | |
| manufacturer-s-declaration-danfoss-md-080r1250-01-ast-id399446992295-0201.pdf | Conformity Declaration | 142.58 KB | |
| eu-uk-declaration-danfoss-eu-uk-080r4003-03-ast-id365934812422-0301.pdf | Conformity Declaration | 128.07 KB | |
| electrical-safety-certificate-ul-e31024-ast-id365930080167-0201.pdf | Conformity Declaration | 5.22 MB | |
| brochure-ad263469501842en01-danfoss-eke-brochure-en-ast-ad263469501842en-000201.pdf | Brochures | 893.11 KB |
Accessory
Product Number: 080Z0055
Manufacturer Code: 080Z0055
Product Number: 080G0294
Manufacturer Code: 080G0294
