Description

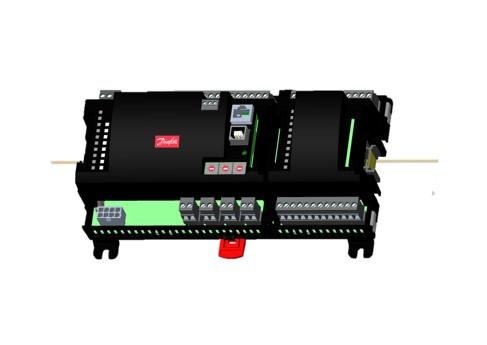

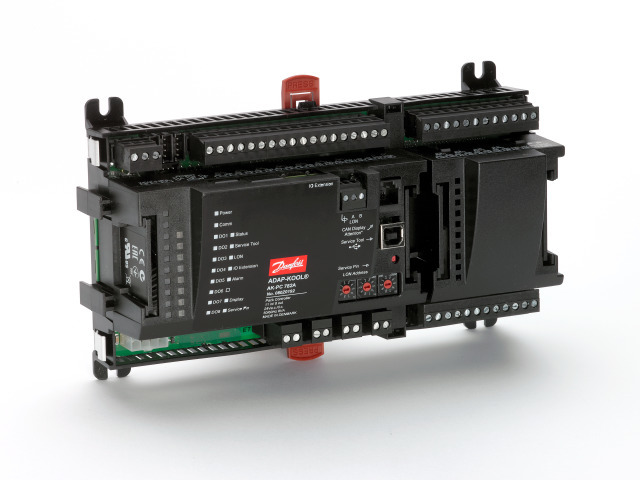

AK-PC 782A, Pack Controller
AK-PC 782A Pack Controller
Product number:
080Z0192
| Product Group : | Electronic Cont - Danfoss |
|---|
General
| Product Group : | Electronic Cont - Danfoss |
|---|
Additional Info
| Additional Info : | Transcri.,Speed,CO2,HP,Oil,HR | Family : | AK-PC |
|---|
Alarm
| Additional Alarm Inputs Max : | 10 pcs |
|---|
Condenser
| Condenser Control Type : | Temperature |
|---|
Display
| Display On Front : | No | Display Option : | EKA 163B; EKA 164B; MMIGRS2 |
|---|
Electrical
| Frequency : | 50/60 Hz | Power Supply : | 24 V |
|---|---|---|---|
| Voltage : | 24 V |
Energy Efficiency/Performance
| Energy Consumption : | 8 VA |
|---|
Fan
| Fan Capacity Control : | Step/ Speed | Fan Control Mode : | PI |
|---|
Features
| Product Features : | CO2 compliant, External comm. included, Floating condenser pressure, Heat recovery function, Load shedding, Night setback, P0 optimization, Pump control, Three way valve control |
|---|
General Information
| Controller Type : | Pack Controller | Function : | Transcritical Booster |
|---|---|---|---|
| Model Number : | 080Z0192 |
Inputs/Outputs
| Additional Analog Inputs Max : | 5 pcs | Additional PI Controls Max : | 3 pcs |
|---|---|---|---|
| Additional Pressure Switches Inputs Max : | 5 pcs | Additional Thermostats Inputs Max : | 5 pcs |
| Capacity Control Input : | Pressure | Capacity Control Mode : | PI |
| Digital Outputs (DO) : | 8 pc | I/O Connectors Max : | 160 pcs |
| Max Number of Compressors : | 8 pcs | Max Number of Extension Modules : | 11 pcs |
| Max Number of Fans : | 8 pcs |
Logistical Information
| Commodity Code : | 85371010 | Country Of Origin : | SVK |
|---|---|---|---|
| EAN : | 5702428946797 | Gross Weight : | 0.964 kg |
Measurements
| Net Weight : | 0.65 kg | Weight : | 0.65 kg |
|---|
Standards
| Approval : | C-TICK, CE, EAC, LLC CDC TYSK, cURus |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| eu-uk-declaration-danfoss-eu-uk-080r1206-05-ast-id365935400444-0301.pdf | Conformity Declaration | 686.39 KB | |
| manufacturer-s-declaration-danfoss-md-080r1237-01-ast-id399450575313-0201.pdf | Conformity Declaration | 502.79 KB | |
| manufacturer-s-declaration-danfoss-md-uk-080r1228-04-ast-id365946724639-0301.pdf | Conformity Declaration | 434.79 KB | |
| pack-controller-type-ak-pc-782a-ast-ai227786437213en-000401.pdf | Technical Literature | 627.13 KB | |
| manufacturer-s-declaration-danfoss-md-080r1221-02-ast-id365946723638-0201.pdf | Conformity Declaration | 464.63 KB |

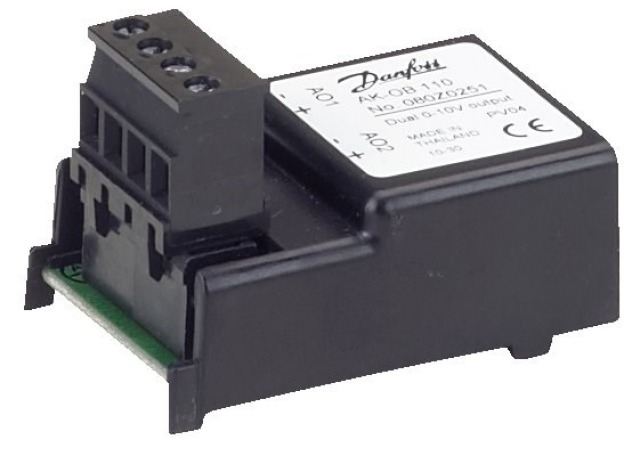

Accessory
