Description
SC18G

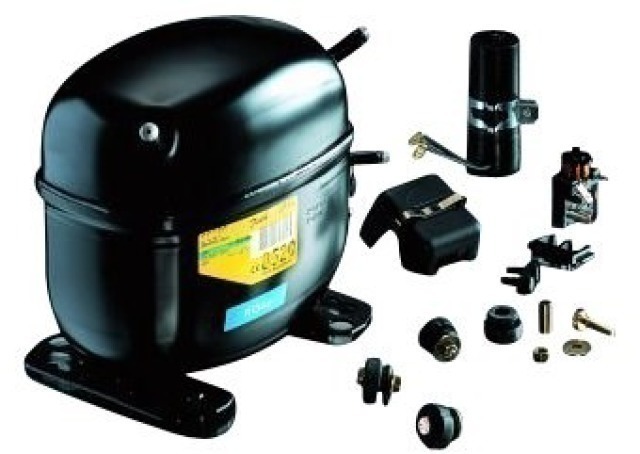

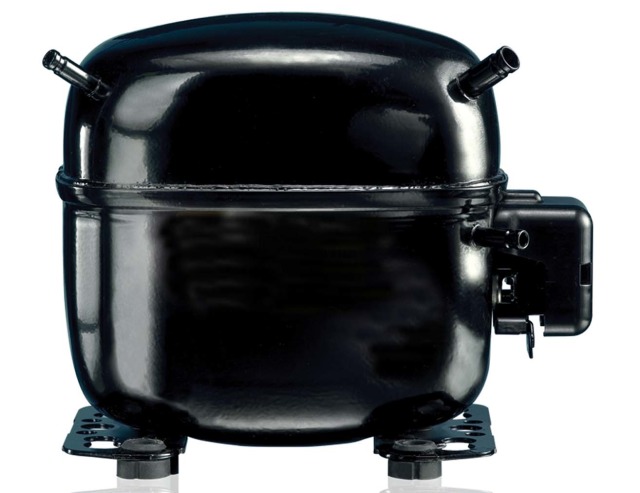

Reciprocating compressor, SC18G
Product number:
104G8820SP
| Application : | HBP;LBP;MBP |
|---|---|
| Displacement : | 17.69 cm³ |
| Nominal HP : | 0.5 HP |
| Oil Type : | POE |
| Power Supply : | 230/1/50 V/Ph/Hz |
| Product Group : | Comp Herm - Danfoss |
| VSD Capable : | No |
General
| Product Group : | Comp Herm - Danfoss |
|---|
Capacity
| Capacity Control : | Fixed speed | Capacity at -10°C : | 684 W |
|---|---|---|---|
| Capacity at -20°C : | 394 W | Capacity at 0°C : | 1087 W |
| Effect : | 470 W |
Compressor
| Displacement : | 17.69 cm³ | Free Gas Volume : | 1460 cm³ |
|---|---|---|---|
| Power Supply Compressor : | 220/1/50 220/1/60 V/Ph/Hz | Swept Volume : | 17.69 cm³ |
| Technique : | Reciprocating |
Connections
| Discharge Connection Height : | 100 mm | Discharge Line Connection : | 6.2 mm |
|---|---|---|---|
| Discharge Line Connection Type : | STUB / TUBE | Suction Connection Height : | 183 mm |
| Suction Line Connection : | 10.2 mm | Suction Line Connection Type : | STUB / TUBE |
Electrical
| Cut In Current HST : | 20.4 A | Frequency : | 50/60 Hz |
|---|---|---|---|
| LRA : | 20.4 A | LRA HST : | 20.4 A |
| LRA HST 60Hz : | 20.40 A | Power Supply : | 230/1/50 V/Ph/Hz |
| RLA : | 3.90 A | Voltage : | 220-240/1/50 V |
| Voltage 50Hz : | 220 V | Voltage 60Hz : | 220 V |
General Information
| Application : | HBP;LBP;MBP | Colour : | Black |
|---|---|---|---|
| Model Number : | SC18G 134a kompressor - 230/1/50 | Stroke Volume : | 17.70 cm³ |
| Type : | SC | VSD Capable : | No |
Logistical Information
| Commodity Code : | 84143020 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702424535032 | Gross Weight : | 14.296 kg |
Material
| Discharge Connection Material : | Copper | Suction Connection Material : | Copper |
|---|
Measurements
| Height : | 209 mm | Length : | 255 mm |
|---|---|---|---|
| Weight : | 14.30 kg | Width : | 151 mm |
Motor
| Motor Code : | CSIR | Motor Type : | CSIR |
|---|
Oil
| Oil Charge : | 600 cm³ | Oil Type : | POE |
|---|
Performance
| Nominal HP : | 0.5 HP |
|---|
R134A Performances
| R134a Capacity -5°C : | 0.870 kW | R134a Capacity -10°C : | 0.684 kW |
|---|---|---|---|
| R134a Capacity -15°C : | 0.526 kW | R134a Capacity -20°C : | 0.394 kW |
| R134a Capacity -25°C : | 0.283 kW | R134a Capacity -30°C : | 0.192 kW |
| R134a Capacity -35°C : | 0.117 kW | R134a Capacity 0°C : | 1.087 kW |
Refrigerant
| Max Refrigerant Charge : | 1.30 kg | Refrigerant : | R134a |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| sc18g-ast-351518.pdf | Technical Literature | 1.12 MB | |
| service-guide-fitters-notes-chapter-8-compressors-ast-ax268748862633en-000301.pdf | Technical Literature | 10.35 MB | |
| light-commercial-compressor-cut-sheet-ast-ai301973983946en-010101.pdf | Technical Literature | 6.18 MB |
