Description

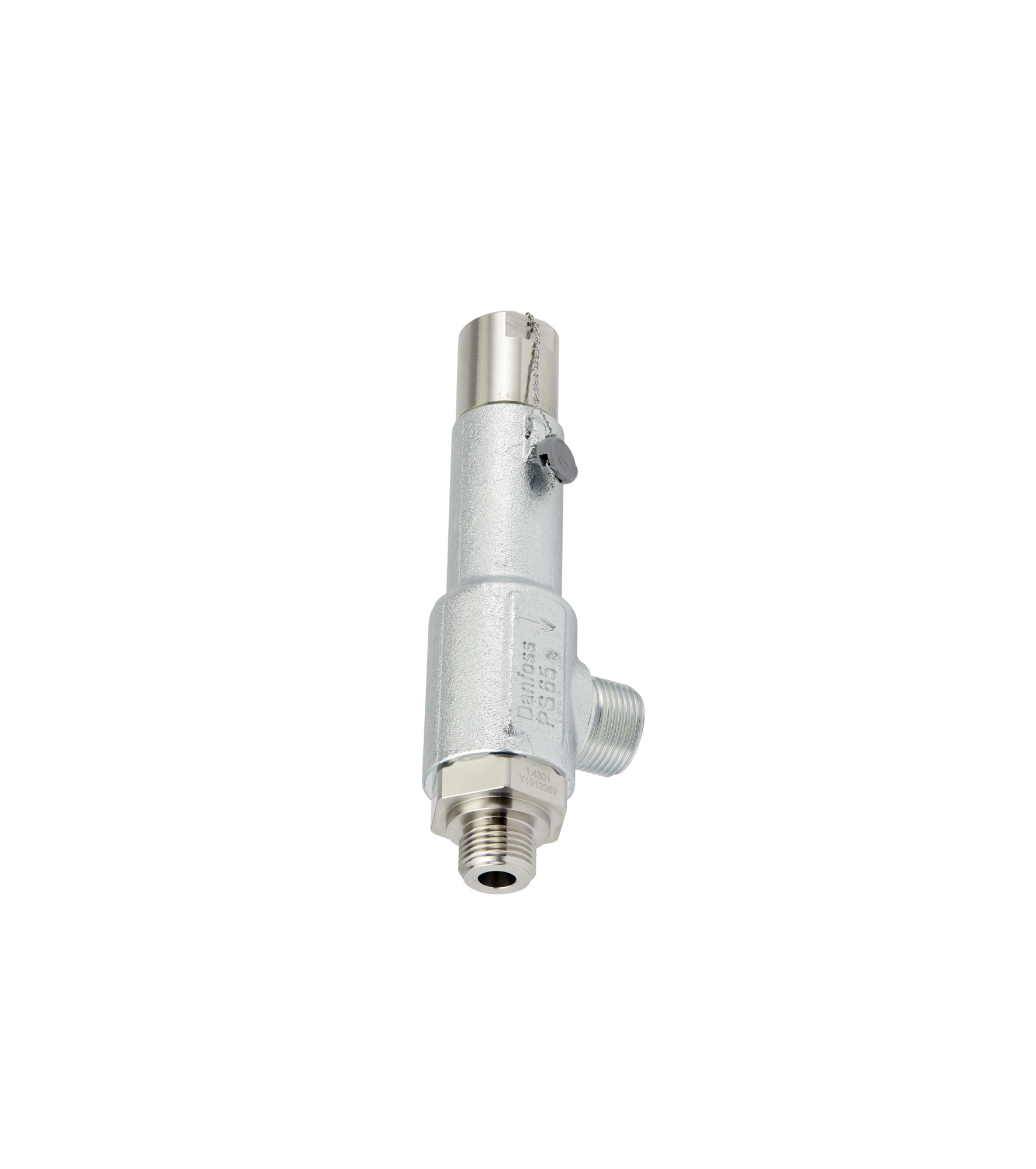

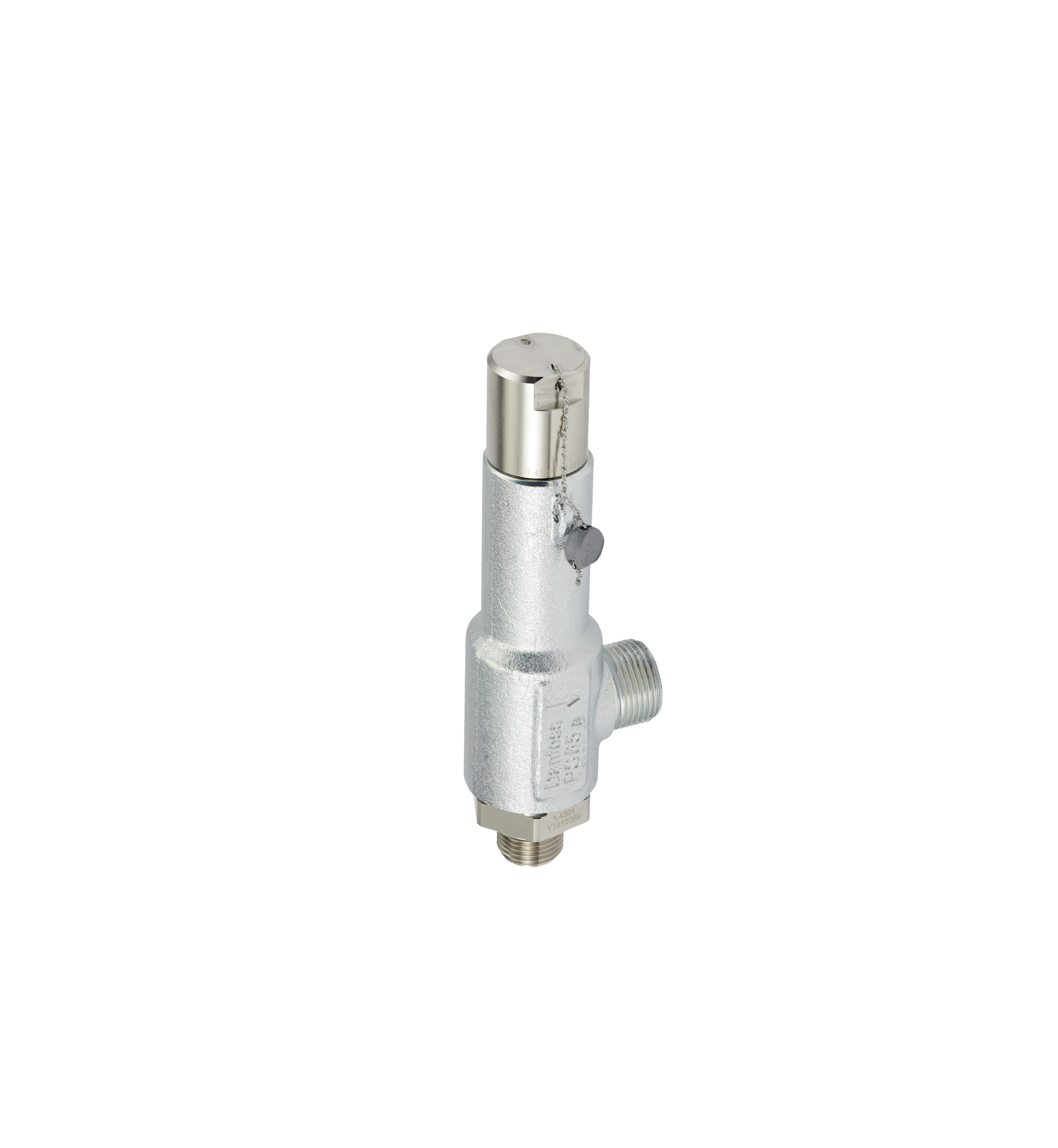

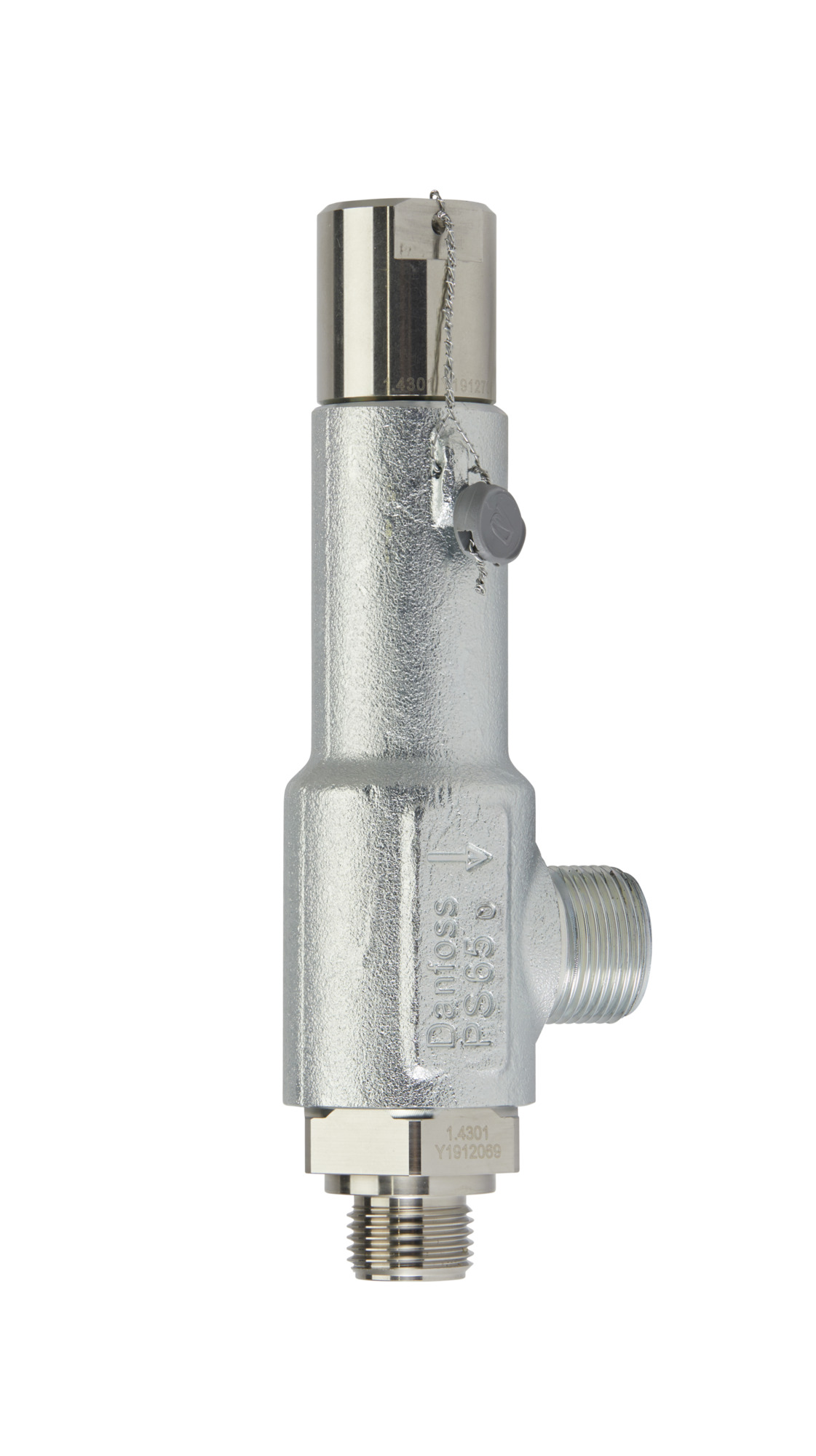

SFA 10 T 322 Safety valve
1/2"~3/4" G BSP SFA 10 T 322 SAFETY VALVE 22 BAR
Product number:
148F4322
| Product Group : | Flow Controls - Other |
|---|
General
| Product Group : | Flow Controls - Other |
|---|
Connections
| Connection Size : | 3/8 in, 10 mm | Connection Type : | G |
|---|---|---|---|
| Inlet Connection Size : | 1/2 in, 10.0 mm | Outlet Connection Size : | 3/4 in, 15.0 mm |
General Information
| Equipment : | Cap | Type : | SFA 10 |
|---|
Logistical Information
| Commodity Code : | 84814010 | Country Of Origin : | POL |
|---|
Measurements
| Weight : | 1.04 kg |
|---|
Pressure
| Max Operating Pressure : | 65.0 Bar | Pressure Setting : | 22 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R452C, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC |
|---|
Temperature
| Temperature Range : | -50-100 °C |
|---|
Valves
| Direction : | Angleway | Flow Area : | 0.056 in², 36.3 mm² |
|---|---|---|---|
| Flow Diameter : | 0.268 in, 7 mm | Fluid Group : | 1 |
| File name | Document Type | Extension | Size |
|---|---|---|---|
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| safety-relief-valve-type-sfa-10-sfa-10h-sfa-15-and-sfa-15-50-ast-ai194386420638en-001501.pdf | Technical Literature | 1.82 MB | |
| safety-relief-valve-type-sfa-10-sfa-10h-and-sfa-15-ast-ai194386420638en-001401.pdf | Technical Literature | 1.82 MB | |
| safety-relief-valvessfa-10-sfa-10h-sfa-15-ast-an323637345441en-000401.pdf | Installation Manual | 1.33 MB |
