Description

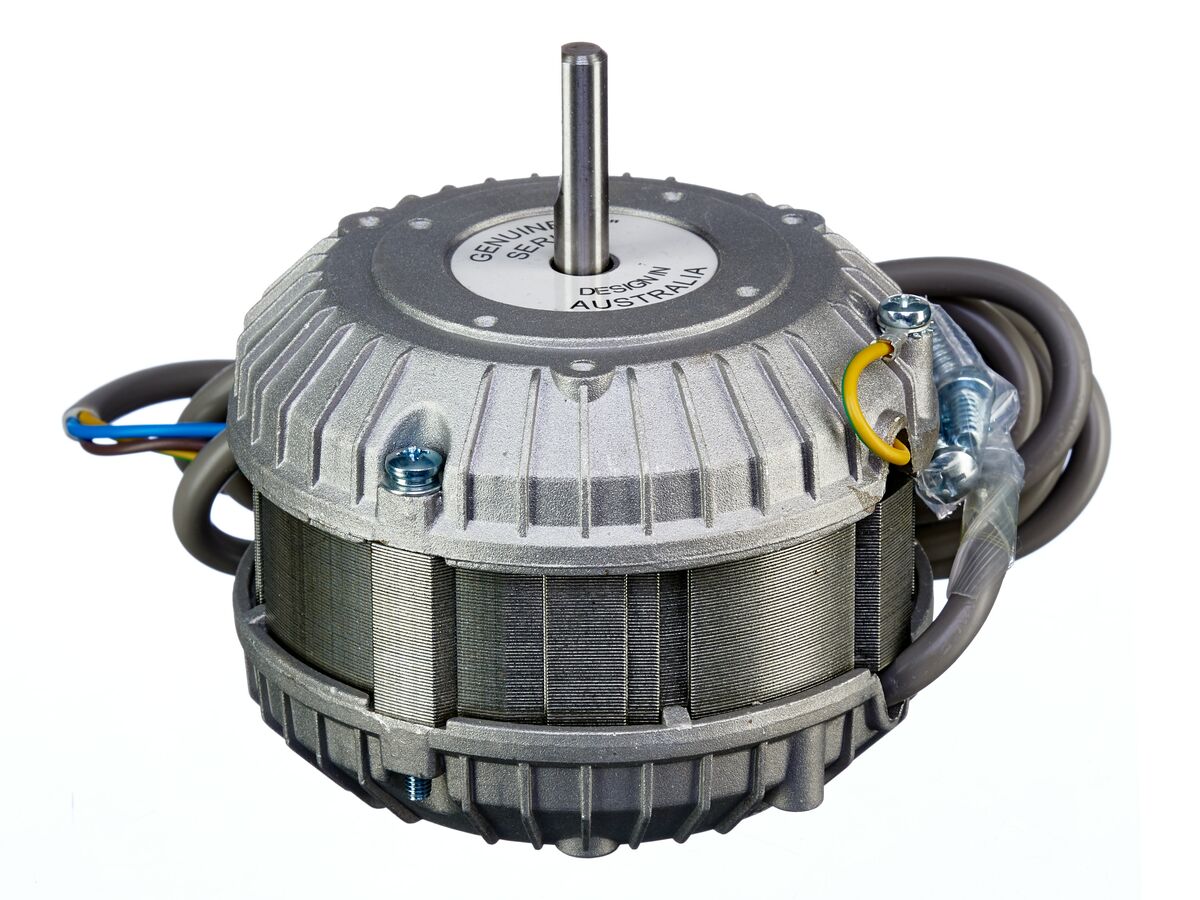

Fasco Fan Motor 50D509-22A, 415V
Product number:
50D509-22AT
Product Group : | Motors - Shaded Pole |
---|
General
Product Group : | Motors - Shaded Pole |
---|
Cable
Cable Length : | 750 mm |
---|
Electrical
Current : | 0.45 A | Power Supply : | 380-415/3/50 V/Ph/Hz |
---|
Fan
Fan Speed : | 1270 r/min | Shaft Diameter : | 6.35 mm |
---|---|---|---|
Shaft Length : | 7.94 mm |
General Information
Number Of Poles : | 4 |
---|
Measurements
Height : | 102 mm | Length : | 102 mm |
---|---|---|---|
Width : | 70 mm |
Temperature
Operating Temperature Range : | -30 °C to 70 °C |
---|
File name | Document Type | Extension | Size |
---|---|---|---|
50d509-22at-ast-1912428.pdf | Brochures | 305.93 KB |
