Description

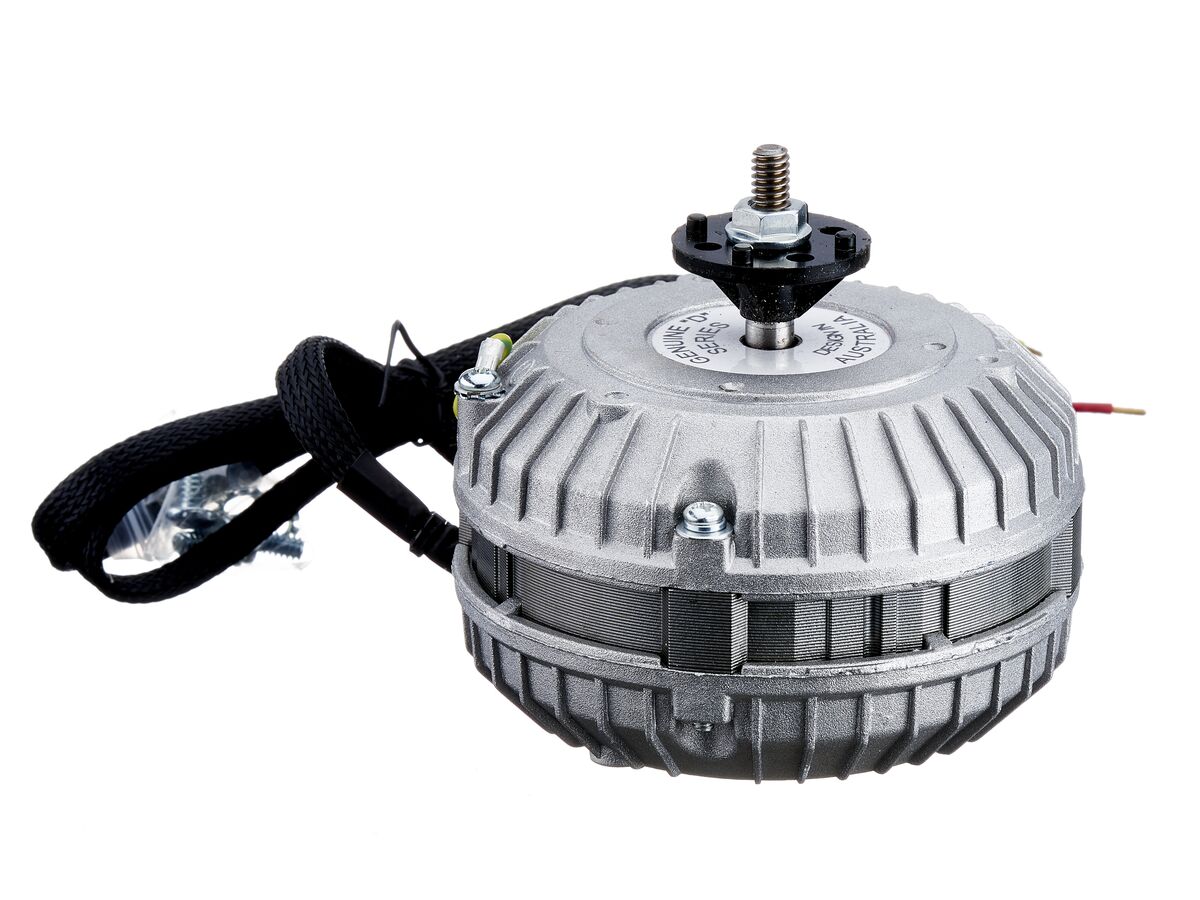

Fasco Fan Motor 50D552-01A
Product number:
50D552-01AT
| Product Group : | Motors - Shaded Pole |
|---|
General
| Product Group : | Motors - Shaded Pole |
|---|
Cable
| Cable Length : | 750 mm |
|---|
Electrical
| Current : | 0.32 A | Power Supply : | 240/1/50 V/Ph/Hz |
|---|
Fan
| Fan Speed : | 1300 r/min | Shaft Diameter : | 6.35 mm |
|---|---|---|---|
| Shaft Length : | 7.94 mm |
General Information
| Number Of Poles : | 4 |
|---|
Measurements
| Height : | 102 mm | Length : | 102 mm |
|---|---|---|---|
| Width : | 70 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| 50d552-01at-ast-1891124.pdf | Brochures | 326.62 KB |
