Description
a

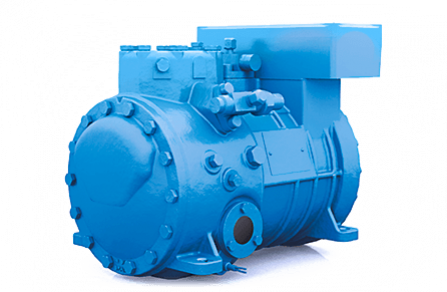

CP A 1,5 7 Y
Product number:
C5033A
| Capacity Control : | Yes |
|---|---|
| Displacement : | 6.9 m³/h |
| Product Group : | Comp Semi - Frascold |
General
| Product Group : | Comp Semi - Frascold |
|---|
Capacity
| Capacity Control : | Yes |
|---|
Compressor
| Displacement : | 6.9 m³/h |
|---|
Connections
| Discharge Line Connection : | 12.7 mm | Suction Line Connection : | 15.9 mm |
|---|
Electrical
| LRA : | 43.5 A | Voltage : | 400/3/50 V/Ph/Hz |
|---|
Measurements
| Height : | 237 mm | Weight : | 36 kg |
|---|
Motor
| Motor Protector : | INT69 |
|---|
Oil
| Oil Charge : | 1000 cc |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 2570 W |
|---|
R404A Performances
| R404A Nominal Capacity -5°C : | 1680 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| a15-7y-ast-600045.pdf | Technical Literature | 543.61 KB |
