Description

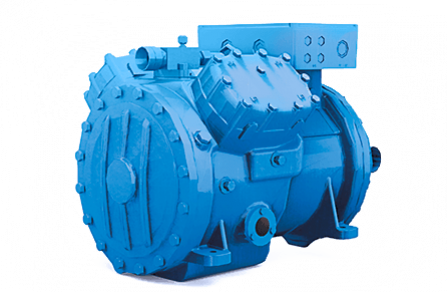

CP S 15 56 Y
Product number:
C5142
| Capacity Control : | Yes |
|---|---|
| Displacement : | 56 m³/h |
| Product Group : | Comp Semi - Frascold |
General
| Product Group : | Comp Semi - Frascold |
|---|
Capacity
| Capacity Control : | Yes |
|---|
Compressor
| Displacement : | 56 m³/h |
|---|
Connections
| Discharge Line Connection : | 28 mm | Suction Line Connection : | 41.3 mm |
|---|
Electrical
| LRA : | 74.8 A | Voltage : | 400/3/50 V/Ph/Hz |
|---|
Measurements
| Height : | 405 mm | Weight : | 130 kg |
|---|
Motor
| Motor Protector : | INT69 |
|---|
Oil
| Oil Charge : | 2900 cc |
|---|
R134A Performances
| R134a Nominal Capacity -5°C : | 21720 W |
|---|
R404A Performances
| R404A Nominal Capacity -5°C : | 15080 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| s15-56y-ast-600062.pdf | Technical Literature | 494.68 KB |
