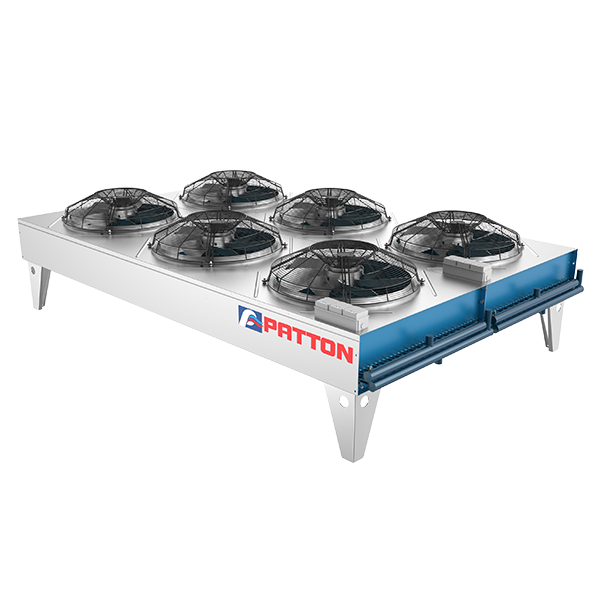

Patton Air Cooled Condenser HQAC10002
Product number:
C8374
| Product Group : | Condenser - Patton AC Fans |
|---|
General
| Product Group : | Condenser - Patton AC Fans |
|---|
Additional Info
| Family : | HQAC Double Module |
|---|
Air Volume/Air Flow
| Air Flow (High/Low Speed) : | 33980/27160 L/s |
|---|
Connections
| Connection Type : | Tube | Inlet Connection Size : | 2 x 54 mm |
|---|---|---|---|
| Outlet Connection Size : | 2 x 54 mm |
Electrical
| Amp High/Low Speed : | 24.0/13.8 A | Watts High/Low Speed : | 12000/3750 W |
|---|
Fan
| Fan Diameter : | 800 mm | Number Of Fans : | 6 |
|---|
Heat Of Rejection
| R134a Heat Of Rejection at 1KTD, High Speed : | 19300 W | R134a Heat Of Rejection at 1KTD, Low Speed : | 22700 W |
|---|---|---|---|
| R404A Heat Of Rejection at 1KTD, High Speed : | 23660 W | R404A Heat Of Rejection at 1KTD, Low Speed : | 20100 W |
Measurements
| Height : | 2312 mm | Length : | 3660 mm |
|---|---|---|---|
| Net Weight : | 600 kg | Width : | 730 mm |
Outdoor Unit Attributes
| Mounting Centres : | 3382 mm x 2128 mm |
|---|
Sound Power/Pressure
| Sound Pressure Level @ 3 meters High/Low Speed : | 80/68 dB(A) |
|---|
