Description

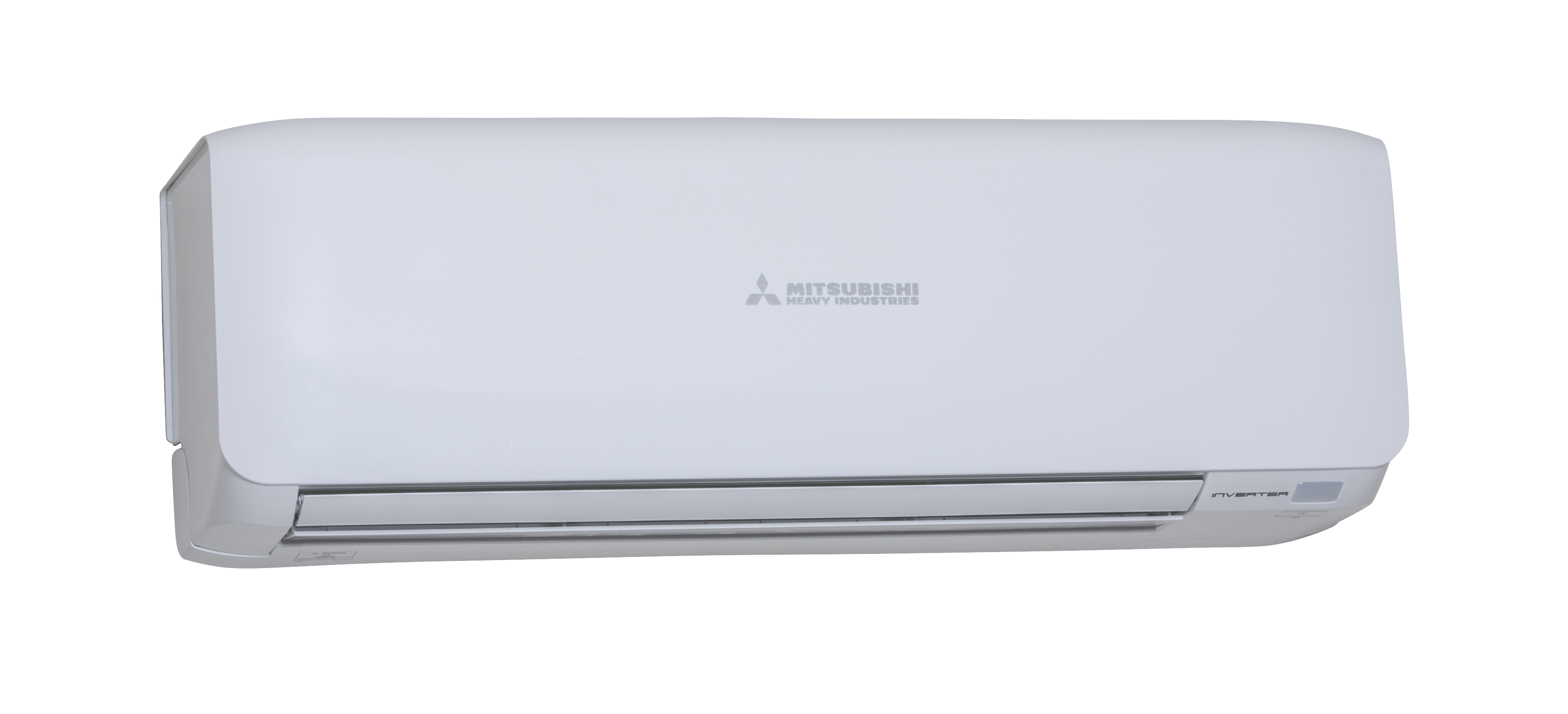

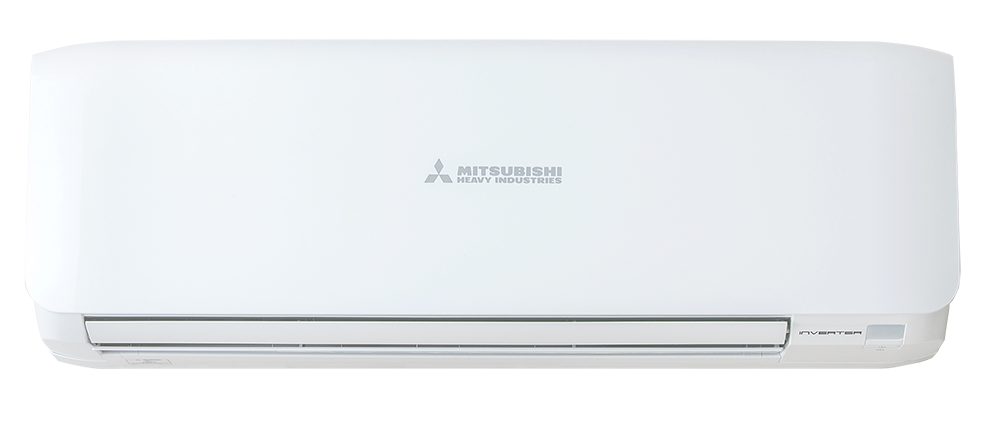

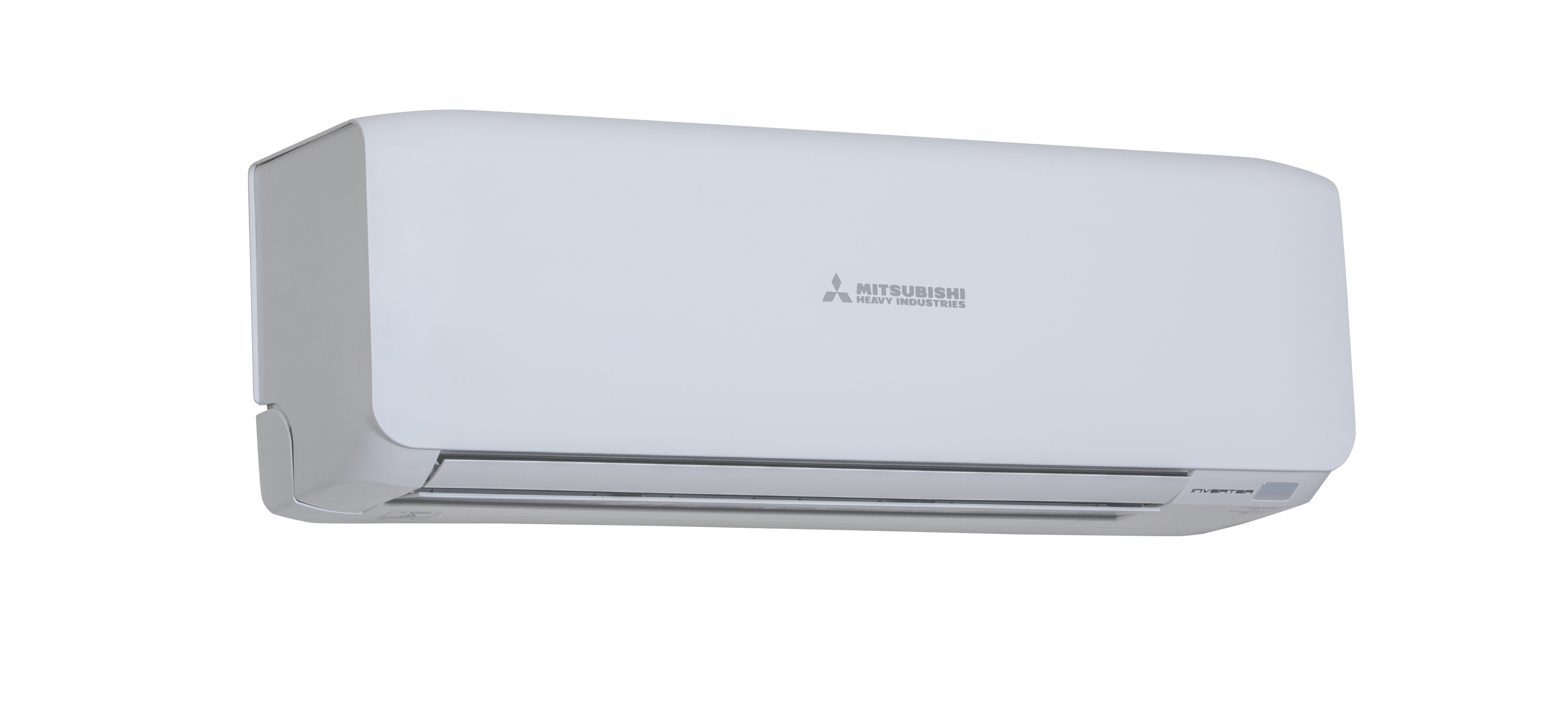

MHI Avanti Inverter Split Set R32 2.5kW
Product number:
DXK09ZSA-W-SET
| Cooling Capacity : | 2.5 kW |
|---|---|
| EER : | 4.90 |
| Heating Capacity : | 3.2 kW |
| Product Group : | Hi-wall - MHI Avanti |
| Refrigerant : | R32 |
General
| Product Group : | Hi-wall - MHI Avanti |
|---|
Additional Info
| Single Split / Multi Split : | Single |
|---|
Air Volume/Air Flow
| Air Flow : | 182 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 2.5 kW | Cooling Capacity (Min/Max) : | 0.9 / 3.5 kW |
|---|
Electrical
| Current (Cooling) : | 2.5 A | Current (Heating) : | 3 A |
|---|---|---|---|
| Input (Cooling) : | 0.51 kW | Input (Heating) : | 0.65 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.92 | EER : | 4.90 |
|---|---|---|---|
| Energy Label (Cooling) : | 5 | Energy Label (Heating) : | 5 |
General Information
| Model Number : | DXK09ZSA-W-SET |
|---|
Heating Capacity
| Heating Capacity : | 3.2 kW | Heating Capacity Min/Max : | 0.9 / 5.2 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 220 mm | Height (IU) : | 305 mm |
|---|---|---|---|
| Width (IU) : | 920 mm |
Outdoor Unit Attributes
| Depth (OU) : | 290 mm | Height (OU) : | 540 mm |
|---|---|---|---|
| Sound Pressure Level (OU) : | 45 dB(A) | Width (OU) : | 780 +62 mm |
Pipes
| Max Height Difference : | 20 m | Max Pipe Run : | 20 m |
|---|---|---|---|
| Pipe Dimension : | 1/4 in, 3/8 in, 6.35 mm, 9.52 mm |
Refrigerant
| Additional Charge : | 20 g/m | Refrigerant : | R32 |
|---|---|---|---|
| Refrigerant Line Length (Oneway) : | 15 m | Refrigerant Pipe Size : | 1/4-3/8 in, 6.35-9.52 mm |
Sound Power/Pressure
| Sound Pressure Level Cooling (High/Medium/Low/Quiet) : | 40 / 31 / 22 / 19 dB(A) | Sound Pressure Level Cooling (Low/Medium/High) : | 19 / 22 / 31 / 40 dB(A) |
|---|---|---|---|
| Sound Pressure Level Heating (High/Medium/Low/Quiet) : | 46 / 38 / 24 / 19 dB(A) | Sound Pressure Level Heating (Low/Medium/High) : | 19 / 24 / 38 / 46 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | - 15 to +46 °C | Outdoor Operating Temp. Range (Heating) : | -15 to +24 °C |
|---|
