| Product Group : | Expansion Valves - Danfoss |
|---|

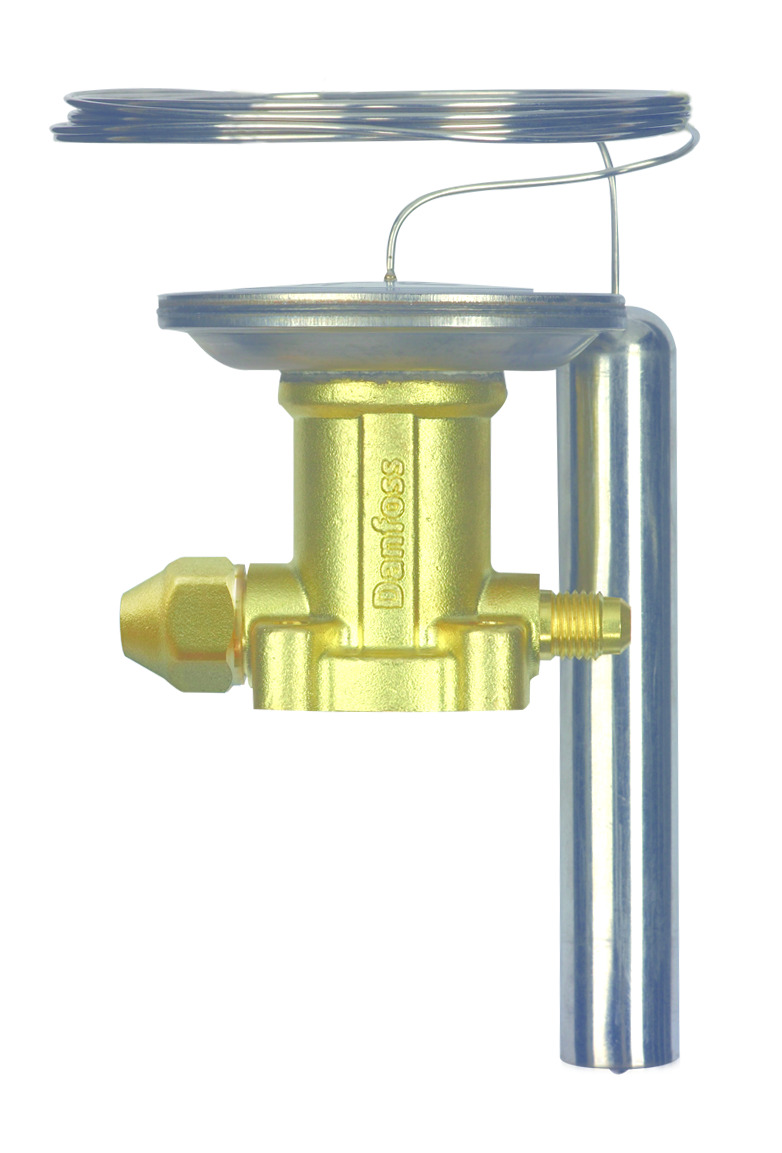

The TE 5 - TE 55 series expansion valve regulate the injection of refrigerant into evaporators. It controls the refrigerant flow based on the superheat. The exchangeable power element is produced with the well known Danfoss laser welding technology for extended lifetime capability. The TE 5 - TE 55 series is available with a wide range of orifices which will cover a wide range of applications.
| Product Group : | Expansion Valves - Danfoss |
|---|
| Family : | TE 5 - 55 |
|---|
| Equalization Connection Size : | 1/4 in | Equalization Connection Type : | Flare |
|---|
| Model Number : | 067B3348 | Type : | TE 12 |
|---|
| Commodity Code : | 84819000 | Country Of Origin : | CHN |
|---|---|---|---|
| EAN : | 5702428148245 | Gross Weight : | 0.63 kg |
| Body Material : | Brass |
|---|
| Capillary Tube Length : | 118.0 in, 3000 mm | Weight : | 0.53 kg |
|---|
| Max Operating Pressure : | 28.0 Bar | Pressure Equalization : | External |
|---|
| Refrigerant : | R404A, R507A |
|---|
| Approval : | EAC, LLC CDC TYSK |
|---|
| Temperature Range : | -40--15 °C |
|---|
| MOP : | -10 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| thermostatic-expansion-valves-type-te-5-te-12-te-20-and-te-55-ast-an020186412218en-000706.pdf | Installation Manual | 878.43 KB | |
| thermostatic-expansion-valves-type-te-5-te-55-ast-ai246186497081en-000801.pdf | Technical Literature | 8.49 MB | |
| manufacturer-s-declaration-danfoss-md-067r1068-af-ast-id365946710628-0301.pdf | Conformity Declaration | 1.46 MB | |
| manufacturer-s-declaration-danfoss-md-033f4006-ast-id365946683607-0101.pdf | Conformity Declaration | 889.08 KB |
