Description

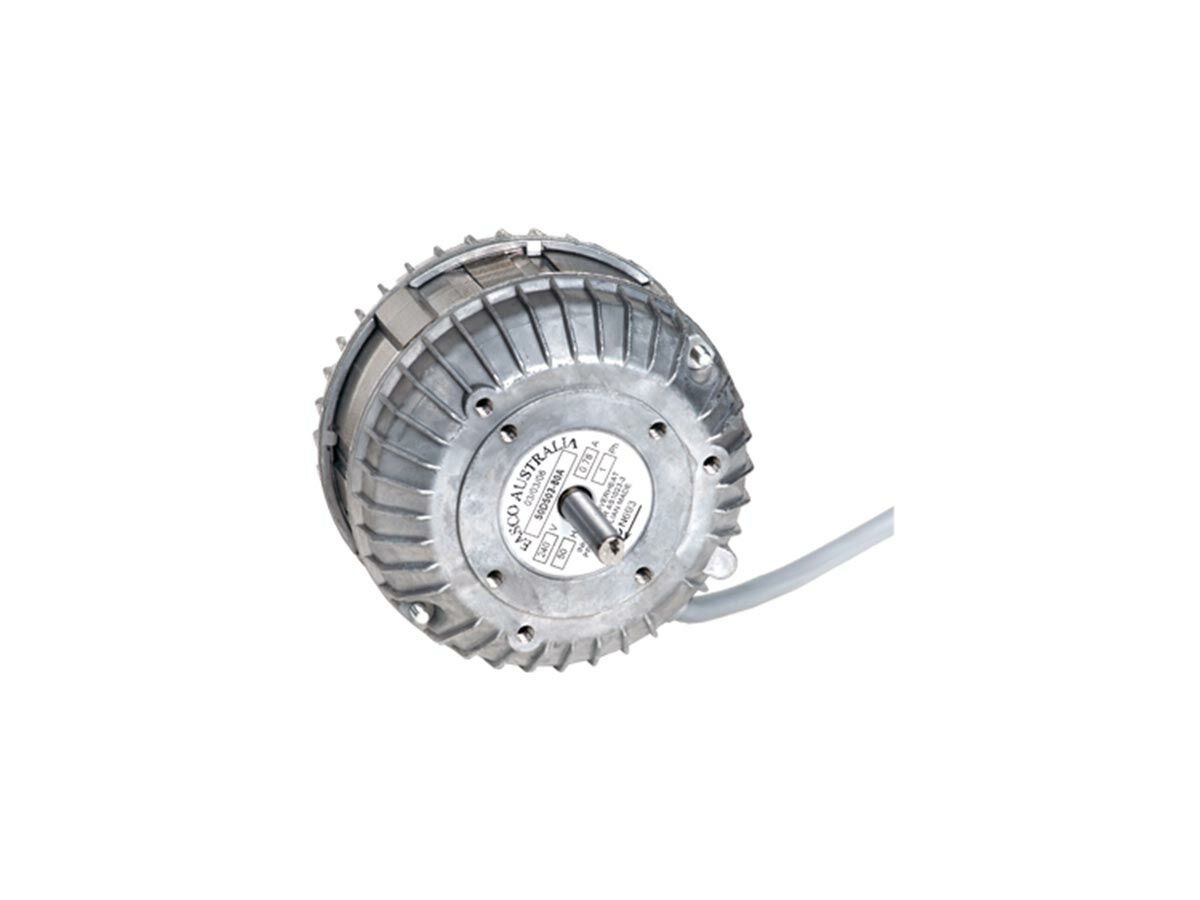

Fasco Fan Motor 50D502-80A
Product number:
F3053
| Product Group : | Motors - Shaded Pole |
|---|
General
| Product Group : | Motors - Shaded Pole |
|---|
Cable
| Cable Length : | 750 mm |
|---|
Electrical
| Current : | 0.5 A | Power Supply : | 240/1/50 V/Ph/Hz |
|---|
Fan
| Fan Speed : | 1300 r/min | Shaft Diameter : | 7.9 mm |
|---|---|---|---|
| Shaft Length : | 32 mm |
General Information
| Number Of Poles : | 4 |
|---|
Measurements
| Height : | 102 mm | Length : | 102 mm |
|---|---|---|---|
| Width : | 77 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| 50d502-80at-ast-1912570.pdf | Brochures | 296.89 KB |
