Description

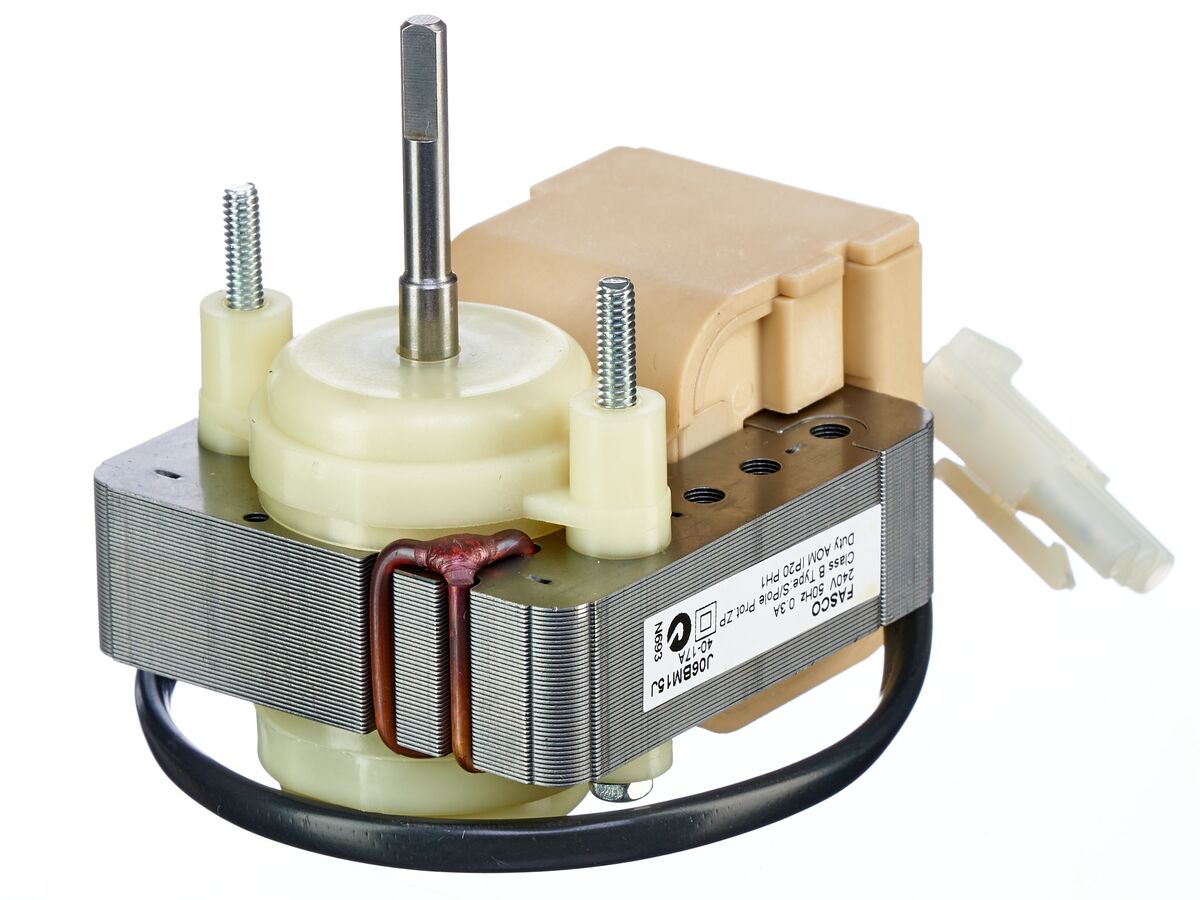

Fasco Fan Motor J06BM15
Product number:
F3100
| Product Group : | Motors - Open Frame |
|---|
General
| Product Group : | Motors - Open Frame |
|---|
Cable
| Cable Length : | 275 mm |
|---|
Electrical
| Current : | 0.34 A | Power Supply : | 240/1/50 V/Ph/Hz |
|---|
Fan
| Fan Speed : | 1300 r/min | Shaft Diameter : | 4.7 mm |
|---|---|---|---|
| Shaft Length : | 27.5 mm |
General Information
| Number Of Poles : | 4 |
|---|
Measurements
| Height : | 79.5 mm | Length : | 63.5 mm |
|---|---|---|---|
| Width : | 50 mm |
Temperature
| Operating Temperature Range : | -30 °C to 70 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| j06bm15j-ast-1891106.pdf | Brochures | 57.68 KB |
