Description

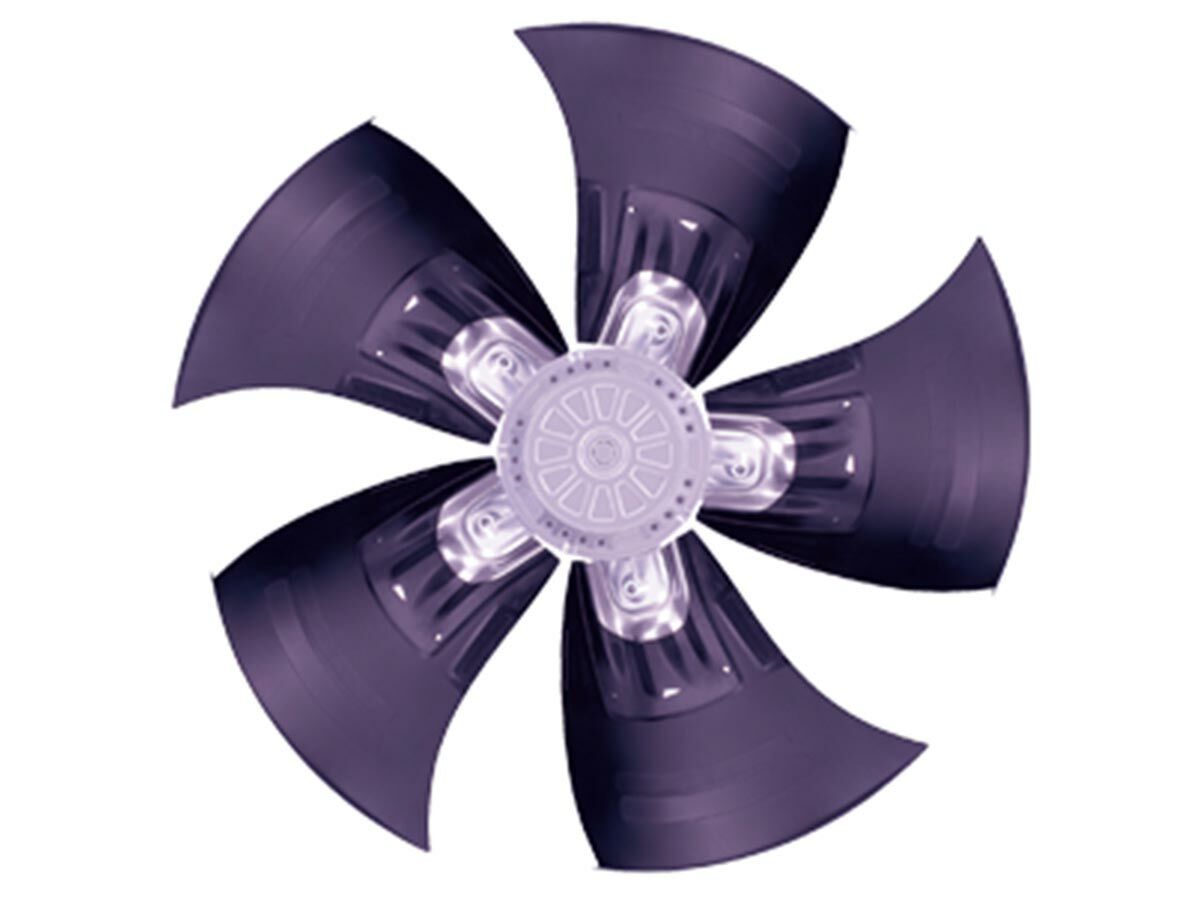

EBM-Papst Ext. Rotor Motor Fan Assy 350mm
Product number:
F3112
| Product Group : | Motors - Axial Motors < 500mm |
|---|
General
| Product Group : | Motors - Axial Motors < 500mm |
|---|
Air Volume/Air Flow
| Air Flow : | 2160 m³/h |
|---|
Electrical
| Capacitor : | 4 µF | Current : | 0.73 A |
|---|---|---|---|
| IP Class : | IP44 | Power Supply : | 240/1/50 V/Ph/Hz |
Fan
| Fan Diameter : | 350 mm | Fan Speed : | 1300 r/min |
|---|
General Information
| Number Of Poles : | 4 |
|---|
Measurements
| Height : | 352 mm | Length : | 352 mm |
|---|---|---|---|
| Weight : | 3.4 kg | Width : | 104.8 mm |
Temperature
| Operating Temperature Range : | -30 °C to 60 °C |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| ebmpapst-s4e350-en-ast-1891122.pdf | Brochures | 799.69 KB |
