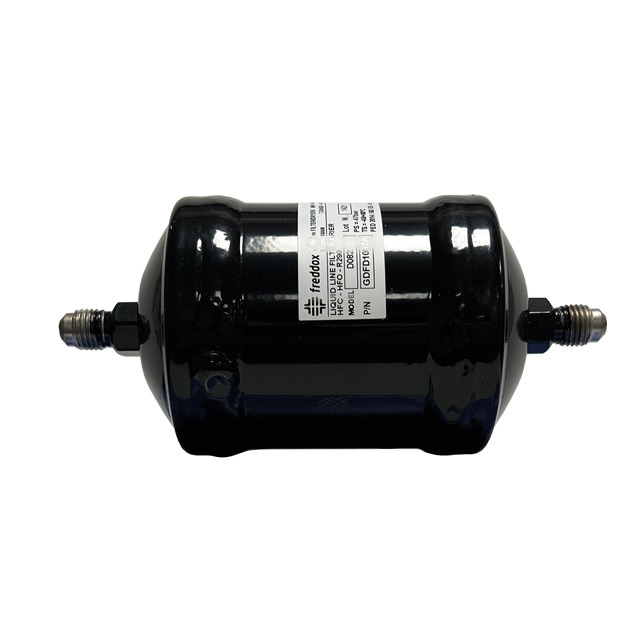

Freddox DSC053S Liquid Line Drier 3/8" ODF

Freddox DSC053S Liquid Line Drier 3/8" ODF
Freddox DSC053S Liquid Line Drier 3/8" ODF
Freddox DSC053S Liquid Line Drier 3/8" ODF
Freddox DSC053S Liquid Line Drier 3/8" ODF
Product number: GDFD1053C
PLEASE LOGIN TO SEE PRICES
Product Group : Driers - Freddox
Description
Freddox filter driers offer a high level of protection for refrigeration and air-conditioning systems liquid Line. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Freddox driers are available in version to be brazed (DSC S), or screwed with male/male (DSC) or female/male (DSC FM) SAE connexions to answer every configuration of installations .
Product Group : Driers - Freddox
Absorption Capacity R134a 24°C [g H2O] : 15.8 kW Absorption Capacity R134a 52°C [g H2O] : 13.6 kW
Absorption Capacity R404A/R507 24°C [g H2O] : 16.1 kW Absorption Capacity R404A/R508 52°C [g H2O] : 15 kW
Absorption Capacity R407C 24°C [g H2O] : 12.9 kW Absorption Capacity R407C 52°C [g H2O] : 10.4 kW
Absorption Capacity R410A 24°C [g H2O] : 14.1 kW Absorption Capacity R410A 52°C [g H2O] : 11.3
Connection Size : 3/8 in, 9.52 mm Connection Type : Solder, ODF
Inlet Connection Size : 3/8 in, 9.52 mm Inlet Type : Soldering
Outlet Connection Size : 3/8 in, 9.52 mm Outlet Type : Soldering
Drying Capacity R134a 24°C [kg refrigerant] : 16.99 Drying Capacity R134a 52°C [kg refrigerant] : 14.62
Drying Capacity R404A/R507 24°C [kg refrigerant] : 17.31 Drying Capacity R404A/R507 52°C [kg refrigerant] : 16.13
Drying Capacity R407C 24°C [kg refrigerant] : 13.87 Drying Capacity R407C 52°C [kg refrigerant] : 11.18
Drying Capacity R410A 24°C [kg refrigerant] : 15.16 Drying Capacity R410A 52°C [kg refrigerant] : 12.15
Model Number : DSC053S
Commodity Code : 84212100 Country Of Origin : CHN
Body Material : Steel Connection Material : Copper
Diameter : 63.5 mm Length : 116 mm
Weight : 0.500 kg
Max Pressure : 47 Bar
Cooling Capacity ∆P 0.07 Bar R1234yf : 13.16 kW
Cooling Capacity ∆P 0.07 Bar R1234ze : 16.03 kW
Cooling Capacity ∆P 0.07 Bar R134a : 18.15 kW
Cooling Capacity ∆P 0.07 Bar R32 : 27.99 kW
Cooling Capacity ∆P 0.07 Bar R404A : 12.94 kW
Cooling Capacity ∆P 0.07 Bar R407C : 18.71 kW
Cooling Capacity ∆P 0.07 Bar R410A : 19.18 kW
Cooling Capacity ∆P 0.07 Bar R448A : 17.26 kW
Cooling Capacity ∆P 0.07 Bar R449A : 17.02 kW
Cooling Capacity ∆P 0.07 Bar R450A : 14.49 kW
Cooling Capacity ∆P 0.07 Bar R452A : 13.10 kW
Cooling Capacity ∆P 0.07 Bar R507A : 12.57 kW
Refrigerant : HC, HFC, HFO
Temperature Range : -40-80 °C
File name Document Type Extension Size
beijerrefab-dsc-freddox-23-en-web-ast-2377496.pdf Brochures pdf 870.76 KB
man-filterdrier-dsc-07-2024-1--ast-2864673.pdf User Manual pdf 1.87 MB
freddox-vessel-conformity-4-3-ast-1446019.pdf Conformity / Certification pdf 236.74 KB
core-water-capacity-ast-1445455.pdf User Manual pdf 476.04 KB
sa44588-vol1-20220919-1-ast-1446013.pdf Conformity / Certification pdf 340.23 KB
freddoxaus---feddoxdriers-ast-2070453.pdf Brochures pdf 968.17 KB
freddox-filter-conformity-cat-1-ast-1446018.pdf Conformity / Certification pdf 154.83 KB
sa44588-vol1-20220919-2-ast-1446016.pdf Conformity / Certification pdf 120.79 KB
