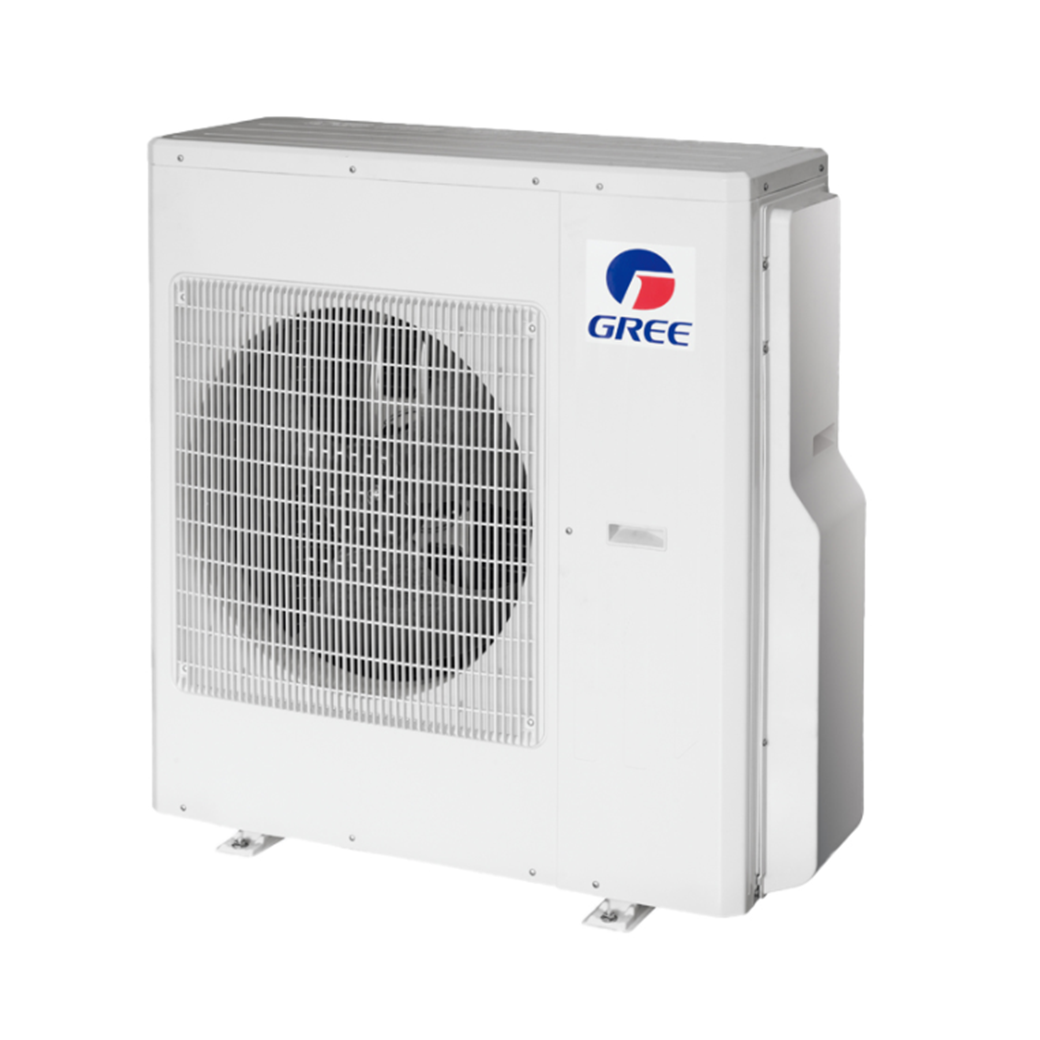

Gree Freematch Outdoor Unit R32 7kW
Item Number:
GWHD(24)NK6PO
| COP : | 4.094 |
|---|---|
| Cooling Capacity : | 7.3 kW |
| EER : | 3.673 |
| Heating Capacity : | 8.3 kW |
| Product Group : | Multi-split - Gree |
| Refrigerant : | R32 |
| Voltage : | 220-240/1/50 V/Ph/Hz |
General Information
| Product Group : | Multi-split - Gree |
|---|
Additional Info
| Indoor Units Connectable (Quantity) : | 3 |
|---|---|
| Single Split / Multi Split : | Multi |
Air Volume/Air Flow
| Air Flow : | 3800 m³/h |
|---|
Capacity
| Cooling Capacity : | 7.3 kW |
|---|---|
| Heating Capacity : | 8.3 kW |
Connections
| Connection Size 2 : | 9.52 mm |
|---|
Electrical
| Current (Cooling) : | 8.7 A |
|---|---|
| Current (Heating) : | 8.9 A |
| Phase : | 1 |
| Recommended Fuse : | 25 A |
| Voltage : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.094 |
|---|---|
| EER : | 3.673 |
Measurements
| Net Weight : | 47.5 kg |
|---|
Outdoor Unit Attributes
| Sound Power Level Cooling (OU) : | 57 dB(A) |
|---|---|
| Sound Power Level Heating (OU) : | 58 dB(A) |
| Sound Pressure Level (OU) : | 68 dB(A) |
Pipes
| Chargeless Piping Length : | 40 m |
|---|---|
| Max Height Difference : | 15 m |
| Max Pipe Length Without Additional Refrigerant : | 40 m |
| Max Piping Length : | 60 m |
Refrigerant
| Additional Charge : | 20 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 1.7 kg |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15/52 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -22/24 °C |
Product information
The Gree Free Match System provides the flexibility of heating or cooling an entire home or office with up to five indoor units with just one outdoor unit, resulting in less noise and less space taken up by large outdoor units all powering multiple indoor units. With four different types of indoor units encompassing seventeen different models, each indoor unit has its own controller, allowing occupants to perfectly customise the temperature in each room without affecting the other rooms.
Key features
- Greater energy savings thanks to Gree’s G10 inverter technology, saving up to 30% versus traditional fixed speed systems
- Wide voltage range operation protects against damage in voltage variations
- Auto restart technology allows indoor units to restart in the same mode after a power outage
- State-of-the-art photocatalytic filtration system purifies air quality by eliminating 99.9% of bacteria and contaminants
