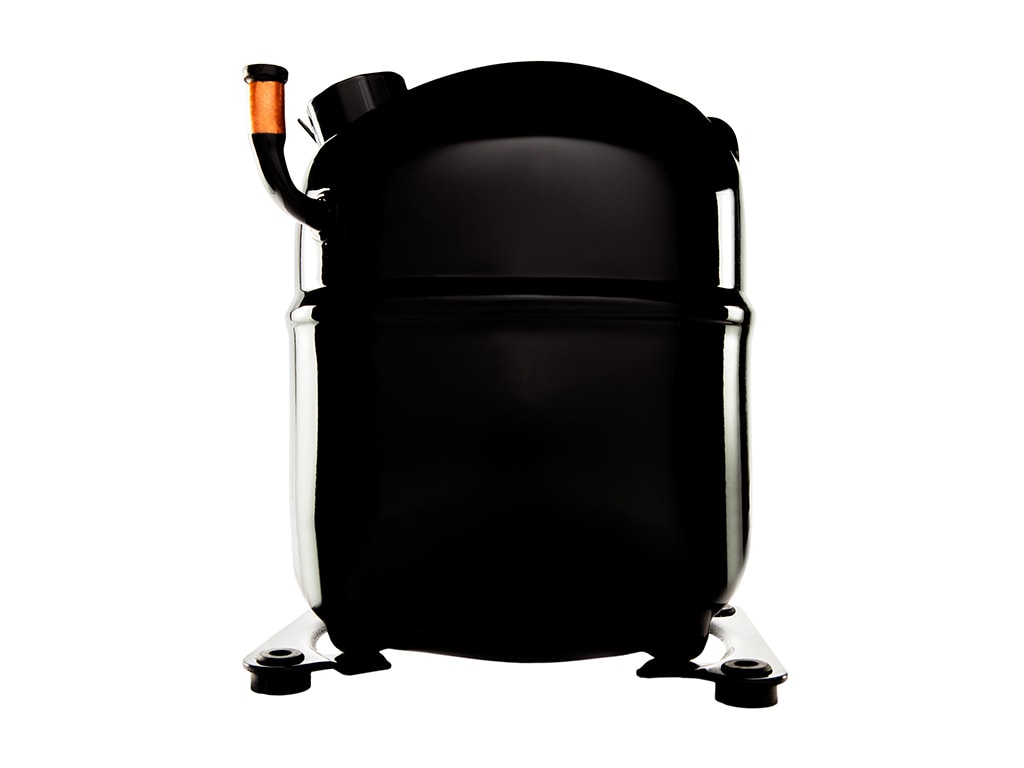

Embraco Compressor NJ9238GK 1.5HP R404a

Product number: NJ9238GK
PLEASE LOGIN TO SEE PRICES
Displacement : 32.7 cc
Nominal HP : 1.5 HP
Oil Type : POE
Product Group : Comp Herm - Embraco
VSD Capable : No
Description

Embraco’s NJ models, together with the NT models, are in the large frame category and are popular among commercial OEMs. NJs are used in reach-in freezers, cold rooms, medical chillers and grab-n-go merchandisers. They are very reliable for high cooling demands in ultra-low, low and medium temp applications while keeping low noise and vibration levels.

  • Reliable for challenging applications

  • Available in 115 V, 208-230 V, and 3PH

  • 50/60 Hz Input Frequency

  • 1-2 HP

  • Refrigerant Compatibility: R134a; R513A; R290; R407C; R22; R404A; R448A; R449A; R452A

  • Applications: LBP, MBP, M/HBP

Product Group : Comp Herm - Embraco
Displacement : 32.7 cc
Discharge Line Connection : 0.375 Suction Line Connection : 0.625
LRA : 43 A RLA : 7.6 A
Voltage : 220-240/1/50 V
VSD Capable : No
Height : 277 mm
Motor Type : CSR
Oil Type : POE
Nominal HP : 1.5 HP
R404A Capacity -5°C : 2970 W
File name Document Type Extension Size
nj9238gk-ast-351567.pdf Technical Literature pdf 115.79 KB
