Description
NTZ271-4B
Compressor - Maneurop - 8.3 HP - 380-420V/3/50Hz
Product number:
NTZ271-4LR1
| Oil Type : | 175PZ |
|---|---|
| Power Supply : | 380-400/3/50 - 460/3/60 V/Ph/Hz |
| Product Group : | Comp Herm - Maneurop |
General
| Product Group : | Comp Herm - Maneurop |
|---|
Additional Info
| Family : | NTZ |
|---|
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz | Swept Volume : | 271.00 cm³ |
|---|---|---|---|
| Technique : | Reciprocating |
Connections
| Connection Type : | Rotolock | Discharge Connection Height : | 125 mm |
|---|---|---|---|
| Discharge Connection Pipe Size : | 3/4 in | Discharge Connection Size : | 1 1/4 in |
| Discharge Line Connection : | 1 1/4 in | Rotolock Discharge Line Connection : | 1 1/4 in |
| Rotolock Suction Connection : | 1 3/4 in | Suction Connection Height : | 233 mm |
| Suction Connection Pipe Size : | 1 1/8 in | Suction Connection Size : | 1 3/4 in |
Cooling Capacity
| Cooling Capacity at 50Hz : | 3 kW | Cooling Capacity at 60Hz : | 9.5 kW |
|---|
Electrical
| Frequency : | 50/60 Hz | IP Class : | IP54 |
|---|---|---|---|
| LRA : | 96 A | MCC : | 27 A |
| Phase : | 3 | Power Supply : | 380-400/3/50 - 460/3/60 V/Ph/Hz |
| RLA : | 19.3 A | Voltage : | 400/460 V |
General Information
| Colour : | Blue | Model Number : | NTZ271A4LR1B |
|---|---|---|---|
| Number Of Cylinders : | 4 | Type : | NTZ |
Logistical Information
| Commodity Code : | 84143081 | Country Of Origin : | FRA |
|---|---|---|---|
| EAN : | 5702428521109 | Gross Weight : | 67.5 kg |

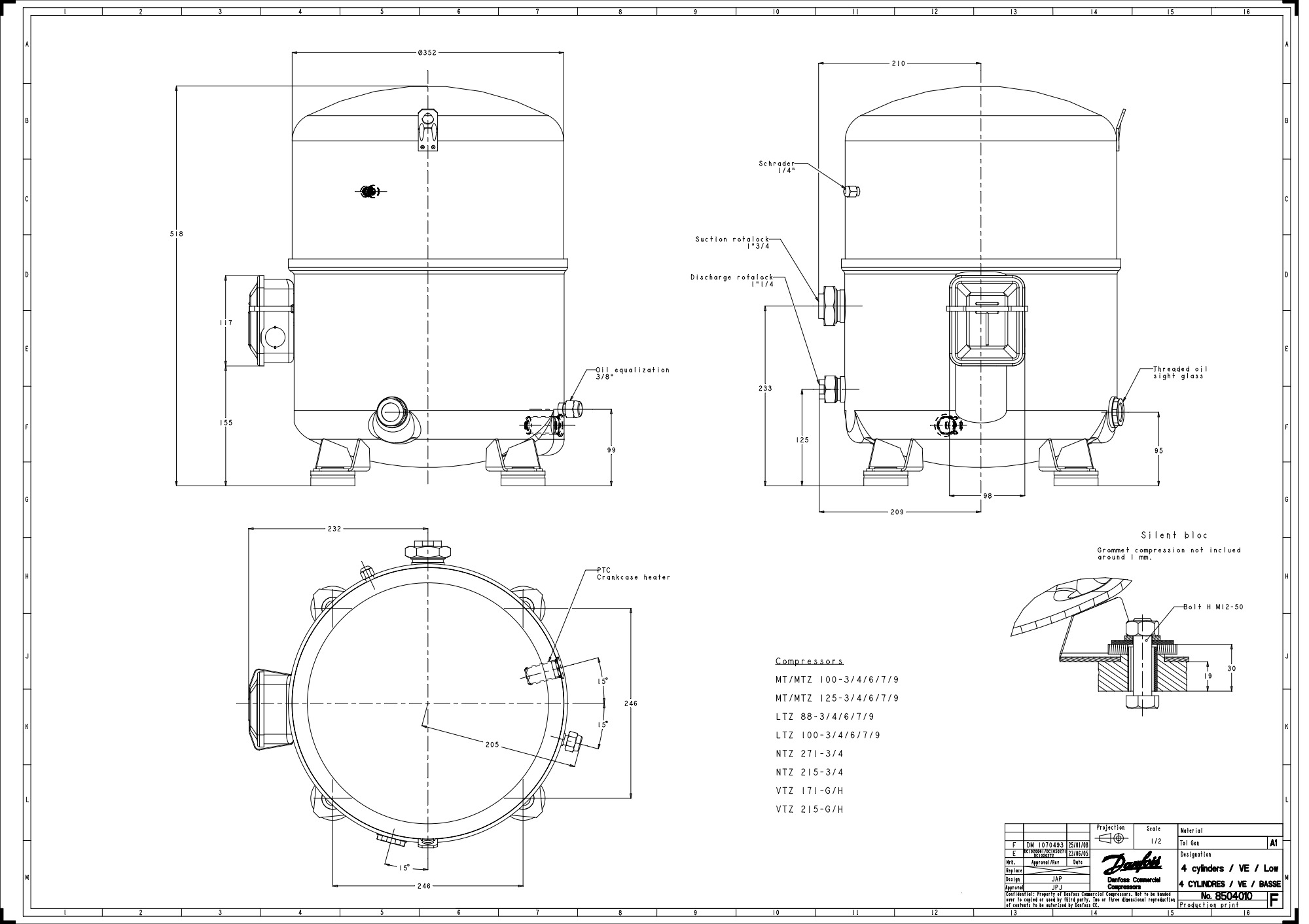

Measurements
| Diameter : | 352 mm | Height : | 519 mm |
|---|---|---|---|
| Length : | 352 mm | Net Weight : | 64 kg |
| Weight : | 64.00 kg | Width : | 352 mm |
Oil
| Oil Charge : | 3.90 L | Oil Equalization : | 3/8'' flare SAE |
|---|---|---|---|
| Oil Type : | 175PZ |
Pressure
| Higher Active Pressure : | 28.5 Bar | Lower Active Pressure : | 22.6 Bar |
|---|
Refrigerant
| Max Refrigerant Charge : | 10.00 kg | Refrigerant : | R404A, R452A |
|---|---|---|---|
| Refrigerant Charge : | 10 kg |
