Description

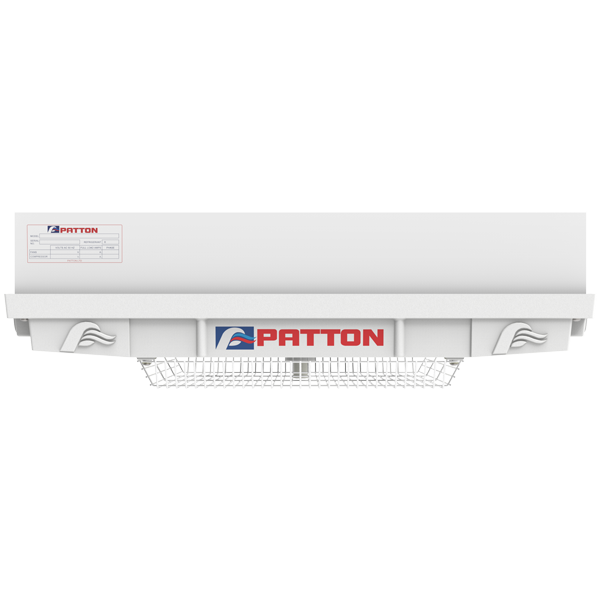

Patton Twin Flow Cabinet Cooler TCM12
Product number:
W5200
| Product Group : | Cabinet Cooler - Patton MT |
|---|---|
| Temperature Application : | Medium Temp |
General
| Product Group : | Cabinet Cooler - Patton MT |
|---|
Coils
| Coil : | Fin and Tube |
|---|
Connections
| Liquid Line Connection : | 1/2 in | Suction Line Connection : | 1/2 in |
|---|
Electrical
| Electric Defrost : | No |
|---|
Fan
| Fan Size : | 300 mm | Number Of Fans : | 1 |
|---|
Measurements
| Depth : | 208 mm | Height : | 466 mm |
|---|---|---|---|
| Length : | 804 mm | Weight : | 12.5 kg |
| Width : | 466 mm |
R404A Performances
| R404A Capacity @ -4SST/6KTD : | 1290 W |
|---|
Temperature
| Temperature Application : | Medium Temp |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| unit-cooler-tc-series-danfoss-emerson-nz-2020-en-ast-2012068.pdf | Brochures | 674.52 KB |
