Description

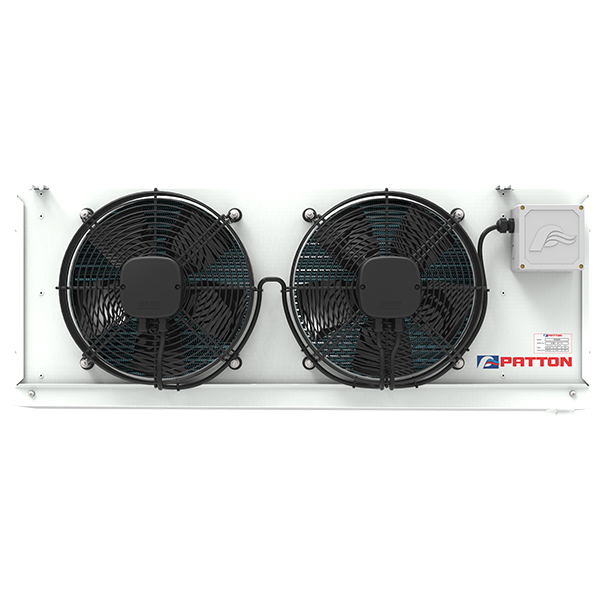

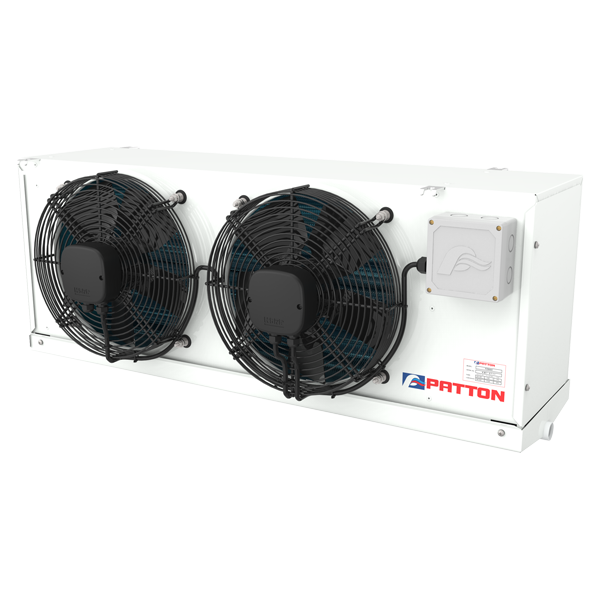

Low Temp Unit Cooler BL14
Product number:
W5435
| Fin Spacing : | 4 mm |
|---|---|
| Product Group : | Evap - Patton LT |
| R404A Capacity @ -24SST/6KTD : | 1410 W |
| Temperature Application : | Low Temp |
General
| Product Group : | Evap - Patton LT |
|---|
Air Volume/Air Flow
| Air Throw : | 6.5 m |
|---|

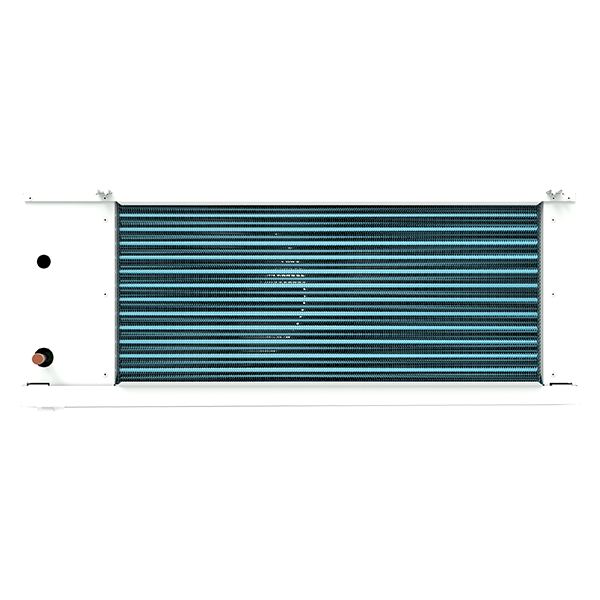

Coils
| Coil : | Fin and Tube |
|---|
Connections
| Drain Connection Size : | 20 mm | Liquid Line Connection : | 1/2 in |
|---|---|---|---|
| Suction Line Connection : | 1/2 in |
Drain
| Drain Location : | Right |
|---|
Electrical
| Electric Defrost : | No | Electrical Connection Location : | Right |
|---|
Evaporator
| Fin Spacing : | 4 mm |
|---|
Fan
| Fan Size : | 300 mm | Number Of Fans : | 1 |
|---|
Measurements
| Depth : | 378 mm | Height : | 294 mm |
|---|---|---|---|
| Length : | 606 mm | Weight : | 14 kg |
R404A Performances
| R404A Capacity @ -24SST/6KTD : | 1410 W |
|---|
R448A Performances
| R448A Capacity @ -24SST/6KTD : | 1380 W |
|---|
Temperature
| Temperature Application : | Low Temp |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| patton-b-series-en-ast-609005.pdf | Technical Literature | 810.3 KB |
